Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-18
REP 1.4 Extension Cover Assembly
PL 1.1.7

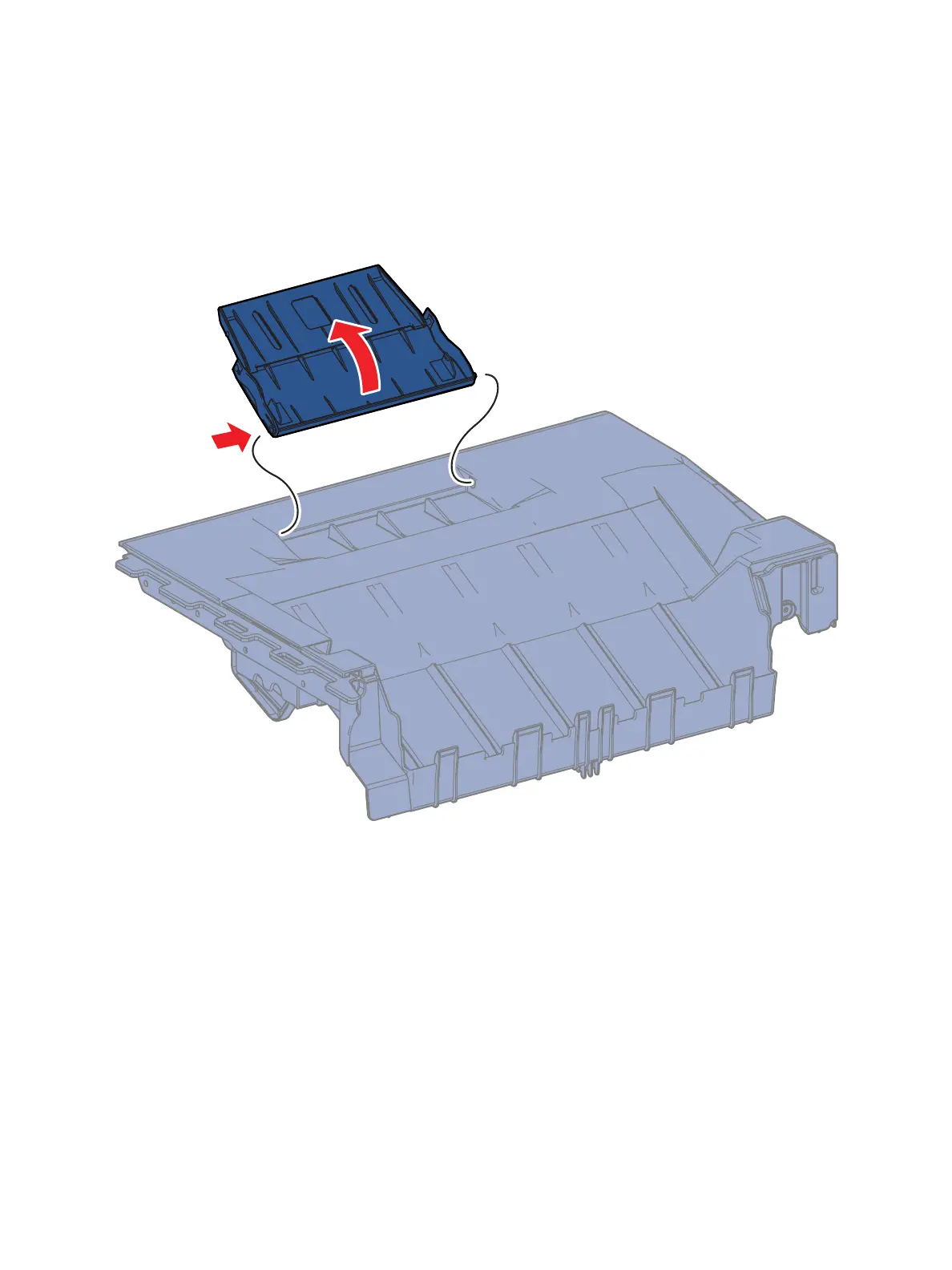

1. Push the Extension Cover Assembly toward the middle to release the boss.
2. Slide the Extension Cover Assembly out to remove.
s7100-042
