Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-43
REP 2.6 Size Switch Holder Assembly
PL 2.1.6
1. Remove Tray 1.
2. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
3. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
4. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
5. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).

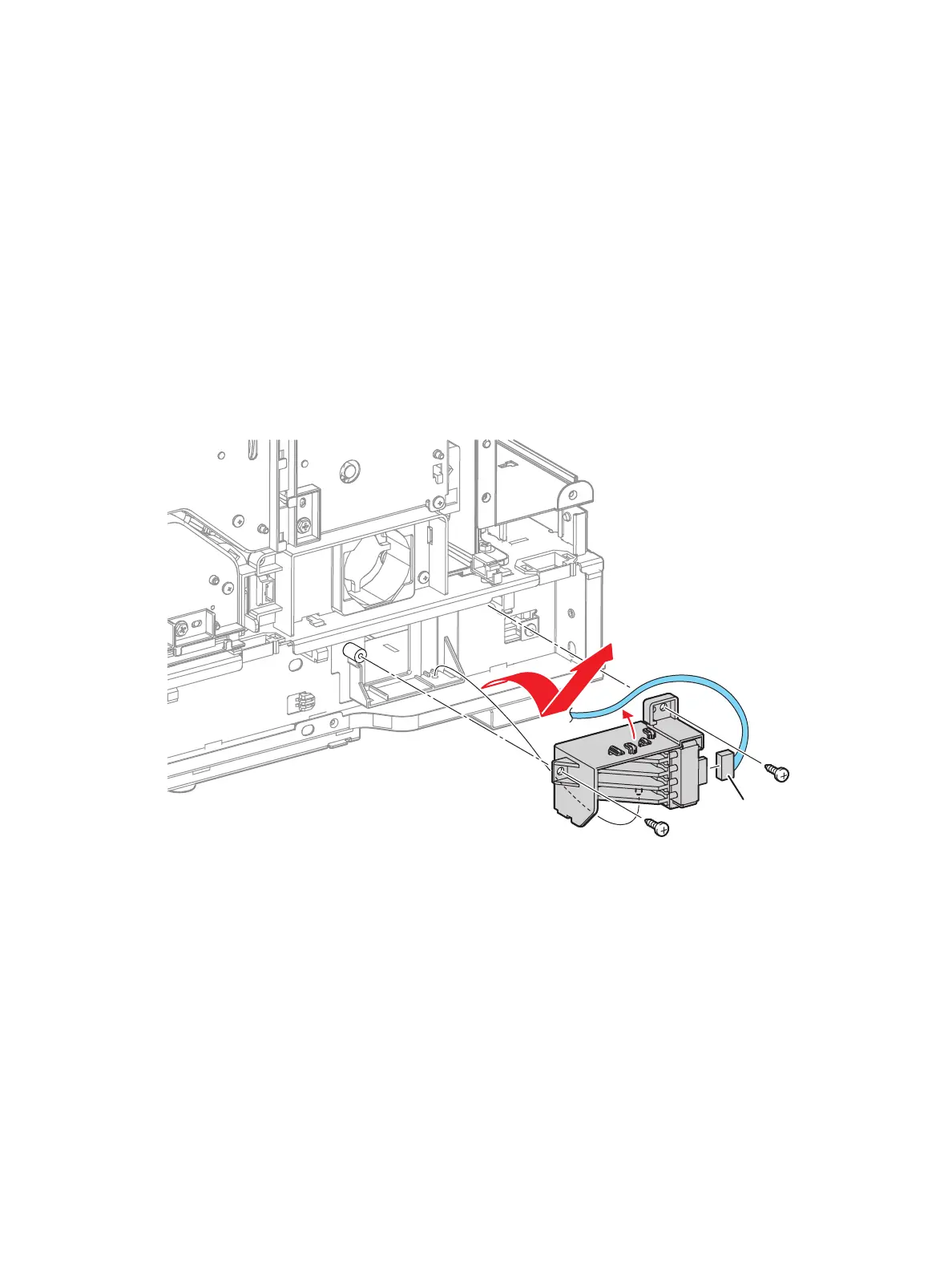

6. Remove 2 screws (silver, tapped, 8mm) that secure the Size Switch Holder Assembly.
7. Slightly lift and remove the Size Switch Assembly.
8. Disconnect the wiring harness connector P/J4653A.
