Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-266
REP 15.6 550 Left Tray Guide
PL 15.1.9
1. Remove Tray 2/ 3/ 4.
2. Remove the Tray Cover (REP 15.9 Tray Cover on page 4-269).
3. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
4. Remove the Turn Chute Assembly (REP 15.10 Turn Chute Assembly on page 4-270).

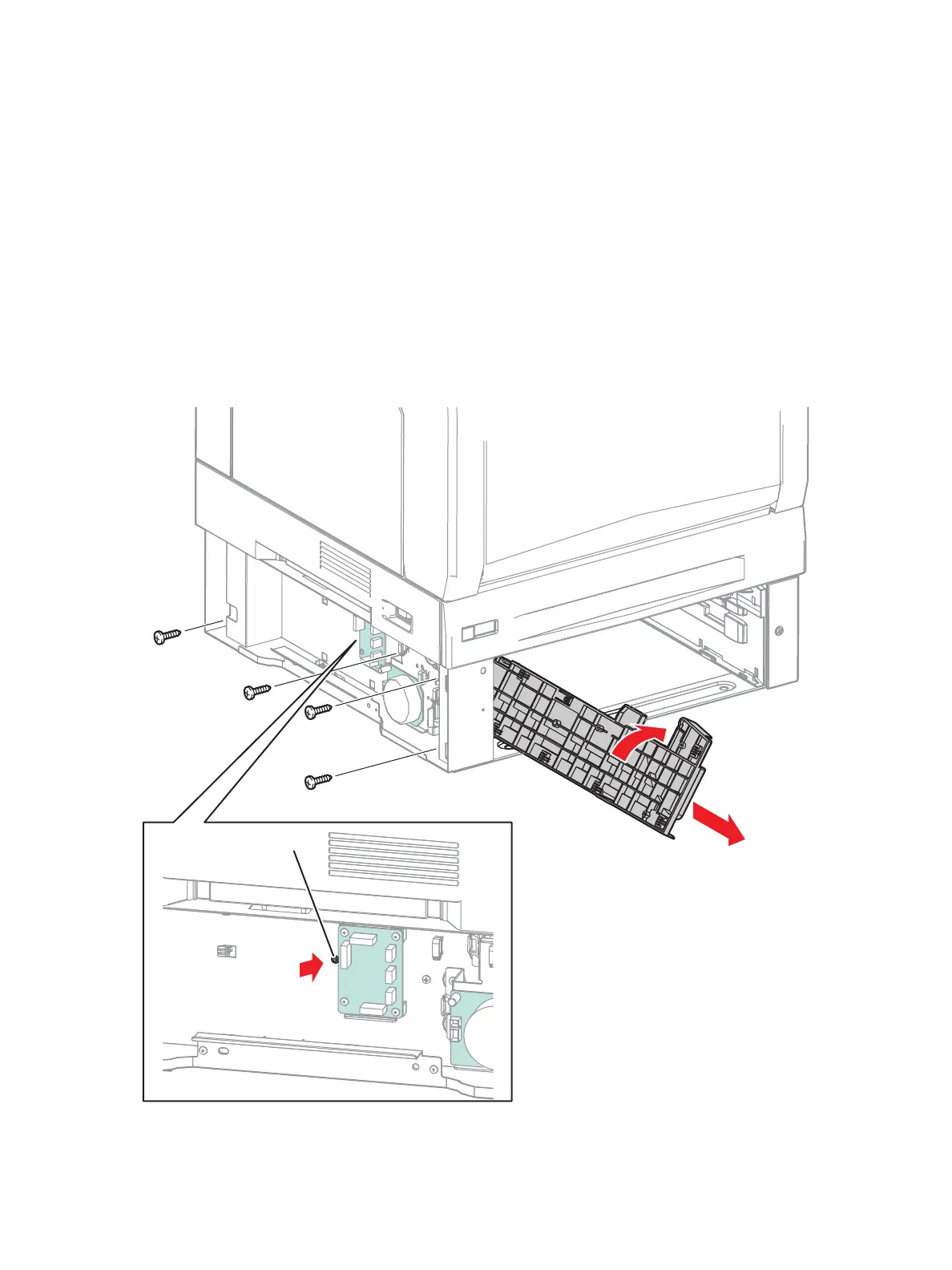

5. Remove 4 screws (silver, tapped, 8 mm) that secure the 550 Left Tray Guide Assembly.
6. While releasing the hook of Left Tray Guide Assembly, slide the Left Tray Guide Assembly
temporarily to the front, release the 7 hooks from the hole to incline the Left Tray Guide Assembly
until it is horizontal and remove it.
s7100-232
Hook
