Service Parts Disassembly

Xerox Internal Use Only Phaser 7100 Service Manual 4-269

REP 15.9 Tray Cover

PL 15.1.13

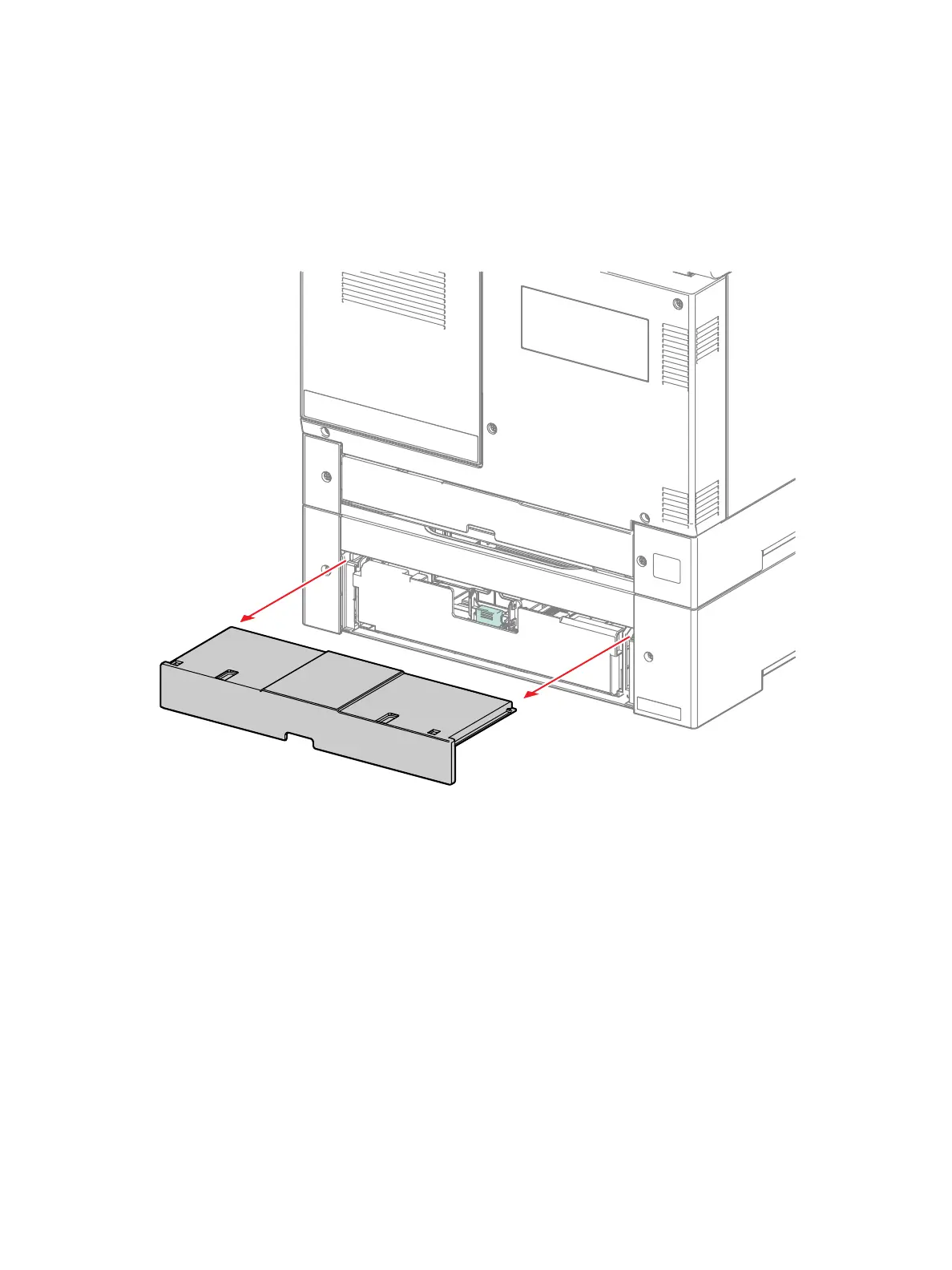

1. From the rear side of the printer, pull out the Tray Cover.

Note: If there is a catch while pulling out the Tray Cover, slightly lift the Cover while pulling it out.

s7100-235
