Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-290
REP 15.26 Option Tray Handle
PL 15.3.23
1. Remove Tray 2/ 3/ 4.
2. Remove 2 screws (silver, tapped, 8 mm) that secure the Retard Chute (PL 15.3.21).
3. Remove 2 screws (silver, tapper, 8 mm) that secure the Front Chute (PL 15.3.22).
4. Use a screwdriver to release the locks while pushing in the bosses on the right and left sides of the
Front Chute.
5. Remove the Front Chute from the Base Housing (PL 15.3.47).

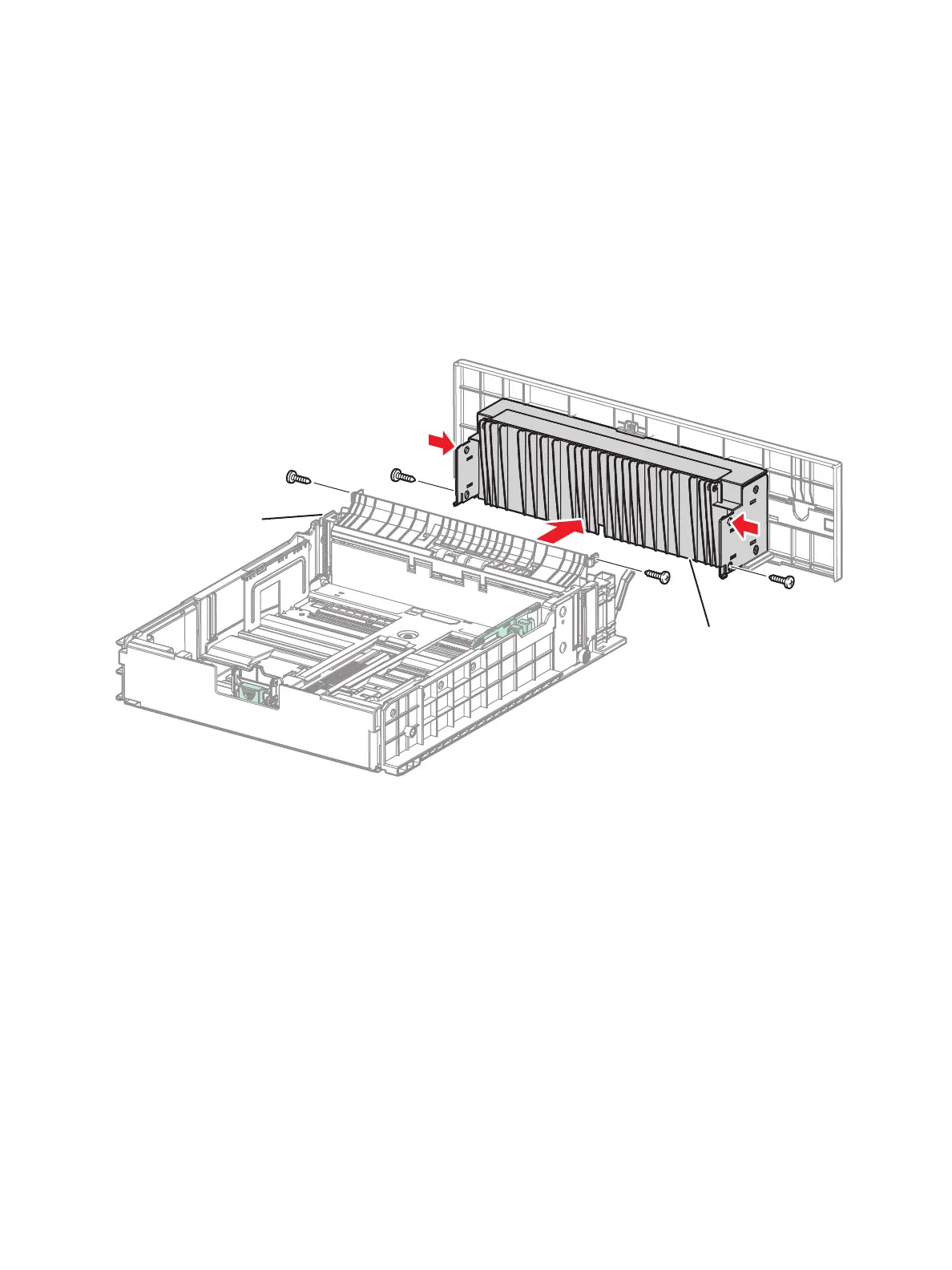

s7100-409
Retard Chute
Front Chute
