REP 2.18 Retard Friction Clutch
PL 2.3.13

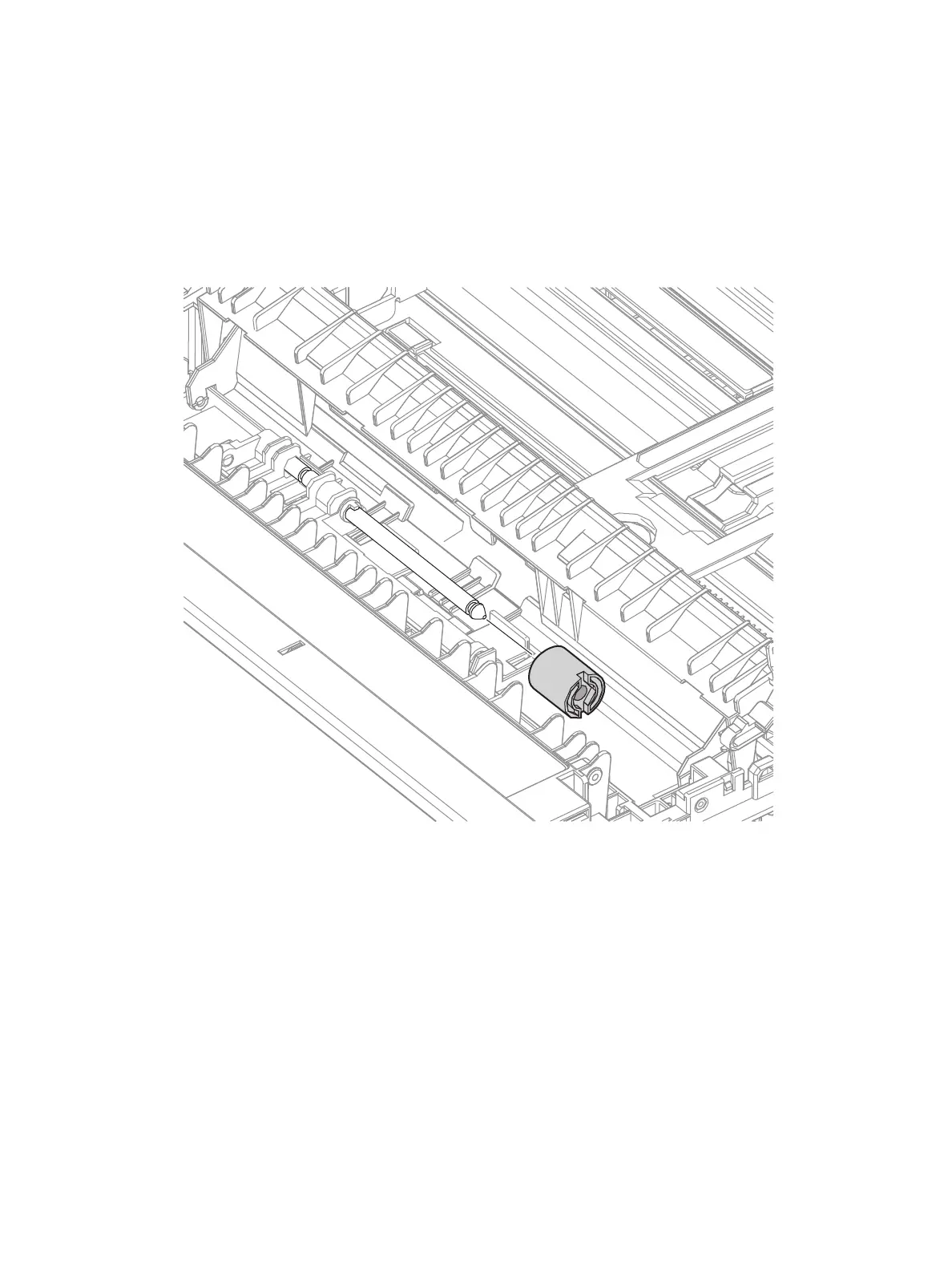

1. Remove Tray 1.
2. Remove the Feed Roller (REP 2.15 Feed Roller/ Retard Roller Assembly on page 4-54).
3. Pull the Retard Friction Clutch out from the Shaft to remove.
s7100-078
