Drive
• Drum Motor (Y/ M/ C) (PR Drive Assembly) - A DC Motor that drives the Drum (Y), Drum (M), and
Drum (C).
• Drum Motor (K) (PR Drive Assembly) - A DC Motor that drives the (K) Drum.
• Developer Motor (Y/ M/ C/ K) (Developer Motor (Match Box) Assembly) - A DC Motor that
drives the Magnet Roller in the Developer Assembly.
• Paper Handling Motor (Paper Handling Drive Assembly) - A DC Motor that drives the Bypass
Tray, Tray 1, and the Rollers in the Registration section.
• Fuser Motor (Fuser Drive Assembly) - A DC Motor that drives the Heat Roller in the Fuser
Assembly.

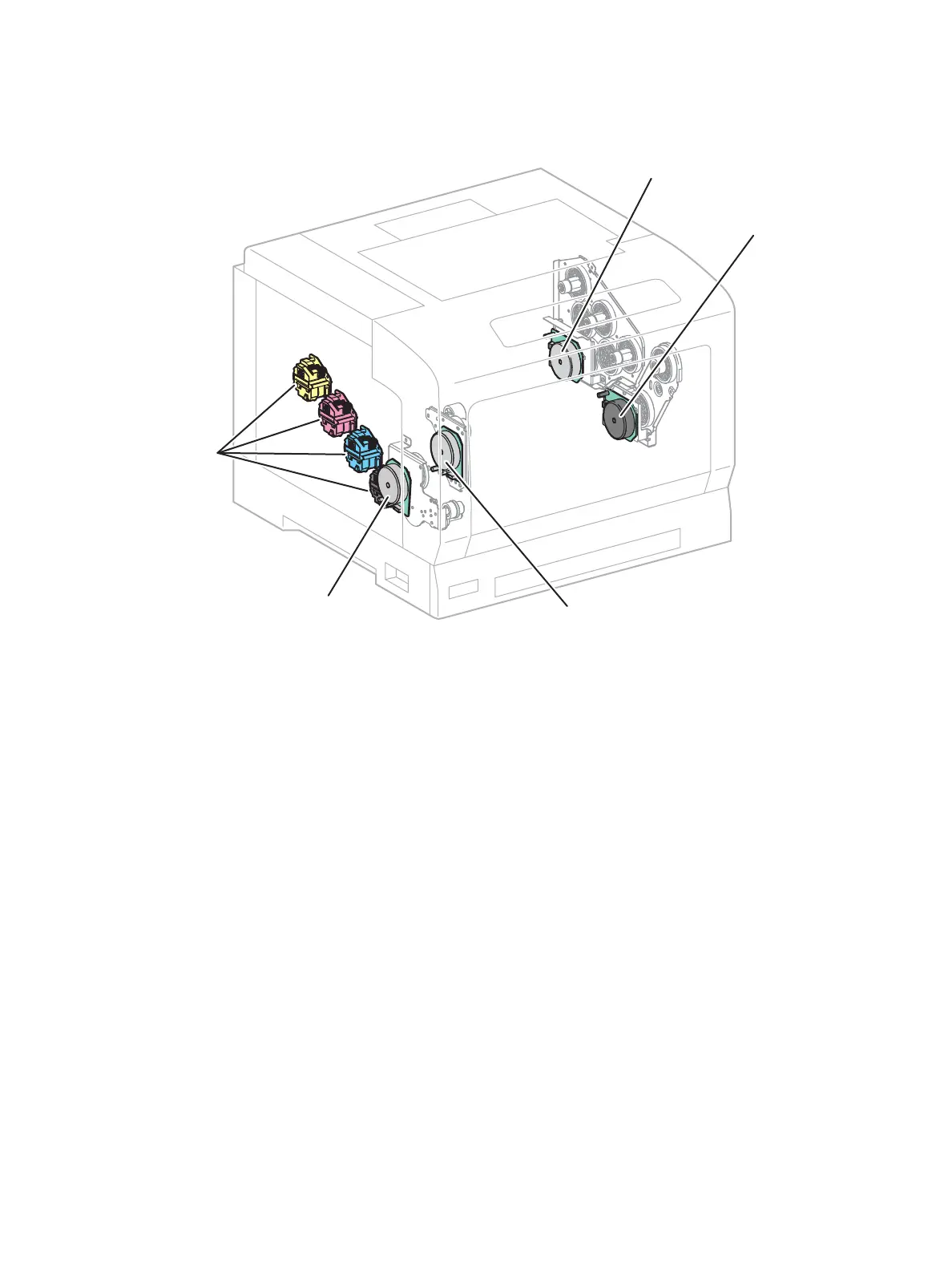

s7100-196
Drum Motor (Y, M, C)
Developer
Motors
(Y, M, C, K)
Paper Handling Motor
Fuser Unit Motor
Drum Motor (K)

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
