Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-172
REP 9.8 Top Right Guard Frame/ Holder Stand Bar
PL 9.1.25/ PL 9.1.97
CAUTION: Do not touch the IBT Belt surface. Carefully place the IBT Unit on a flat surface that is
free of any contamination, or dust, etc. with the Waste Cartridge Assembly facing up.
1. Remove the Toner Cartridge Cover Assembly (REP 1.9 Toner Cartridge Cover Assembly on
page 4-24).

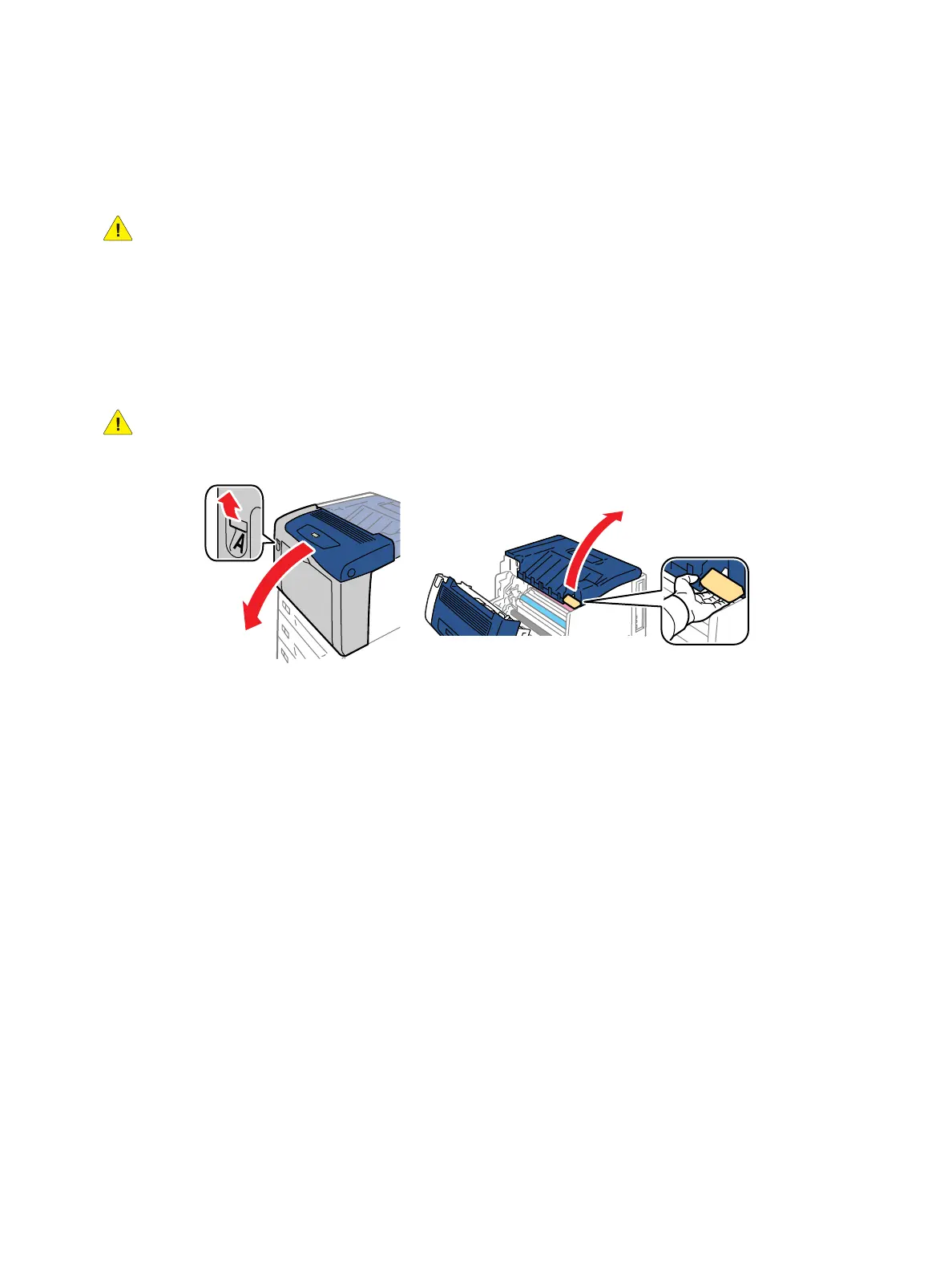

2. Release latch A and open the Front Cover Assembly (PL 1.1.38).
3. Release latch C and open the Top Cover Assembly (PL 1.1.1) together with the Toner Cartridge
Cover Assembly (PL 1.12).
CAUTION: Be sure to hold the Toner Cartridge Cover Assembly together with the Top Cover
Assembly to prevent the Toner Cartridge Cover Assembly from swinging loosely.
4. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
5. Remove the Top Cover Assembly (REP 1.1 Top Cover Assembly on page 4-9).
C
s7100-251
