Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-173

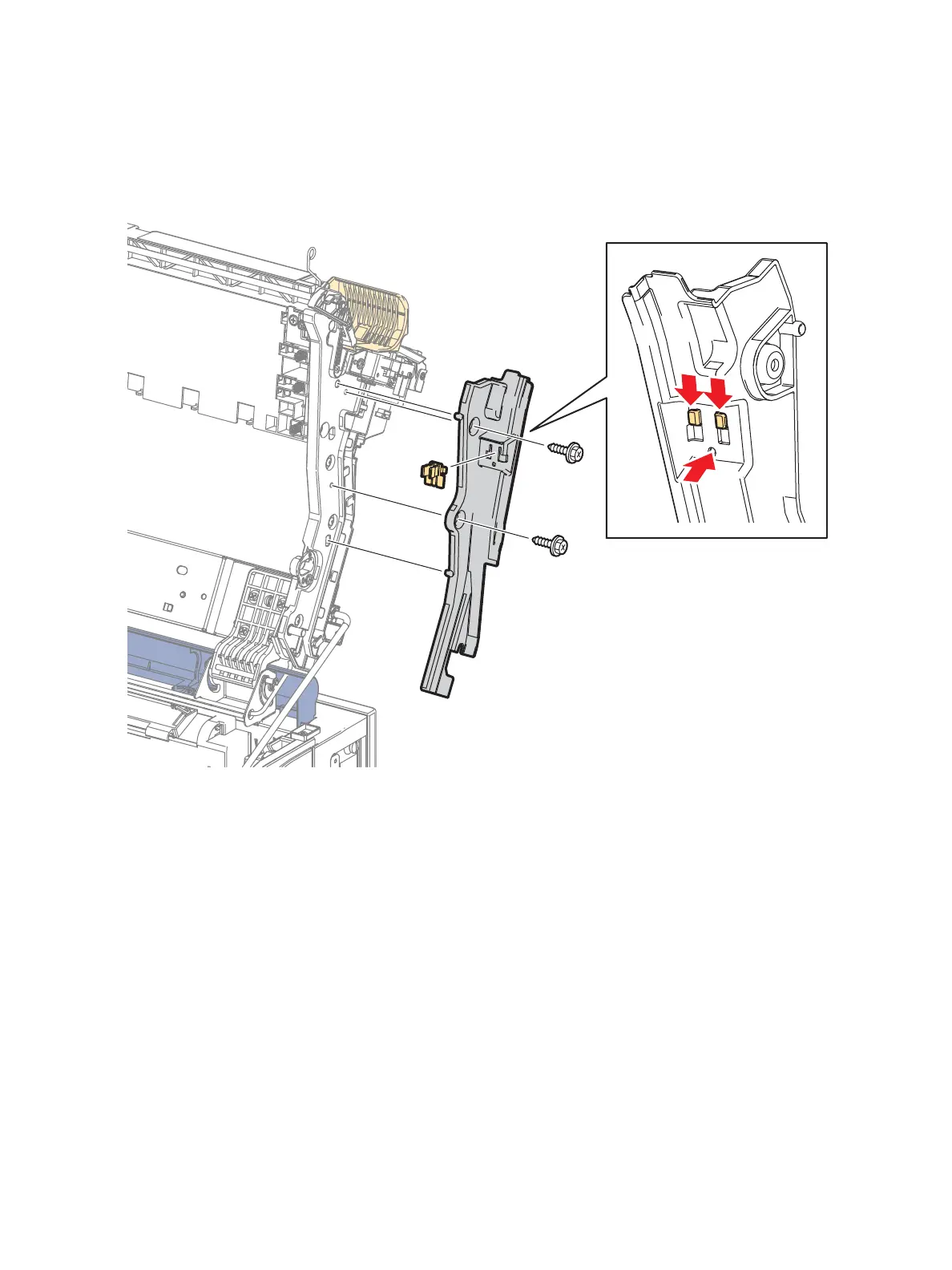

6. Remove 2 screws (silver, tapped, 8 mm) that secure the Top Right Guard Frame and remove the
Frame.
7. While pushing in and sliding the protrusion of the Stand Bar Holder, release the Holder from the
Top Right Guard Frame.
s7100-350
