Xerox Phaser 7100 Service Manual

General and Operation Overview
Phaser 7100 Service Manual Xerox Internal Use Only1-56
Developer Housing Assembly (Development)
The Developer Housing Assembly contains toner and a small amount of Carrier. The Developer
Housing Assembly also comes installed with a CRUM, which is a non-volatile memory that stores
consumable data.
• Dispense Motor Assembly - Drives the Paddle in the Toner Cartridge and the Auger in the
Transport section to supply toner from the Toner Cartridge to the Developer Housing Assembly.
One is allocated to each color (Yellow, Magenta, Cyan, and Black).
• Trickle Motor (Waste Auger Assembly) - Drives the Auger to transport the used toner that is
ejected from the Developer Housing Assembly into the Imaging Unit Waste Toner Container in the
(K) Imaging Unit Assembly.
• Developer Housing Assembly (Y/ M/ C/ K) - The Housing Developer Assembly is made up of the
following main components:
– Magnet Roller - Contacts the Drum and forms toner images on the Drum.
– Auger - Agitates the toner.
– Trimmer - Evens out the layer of toner and carrier on the Magnet Roller.

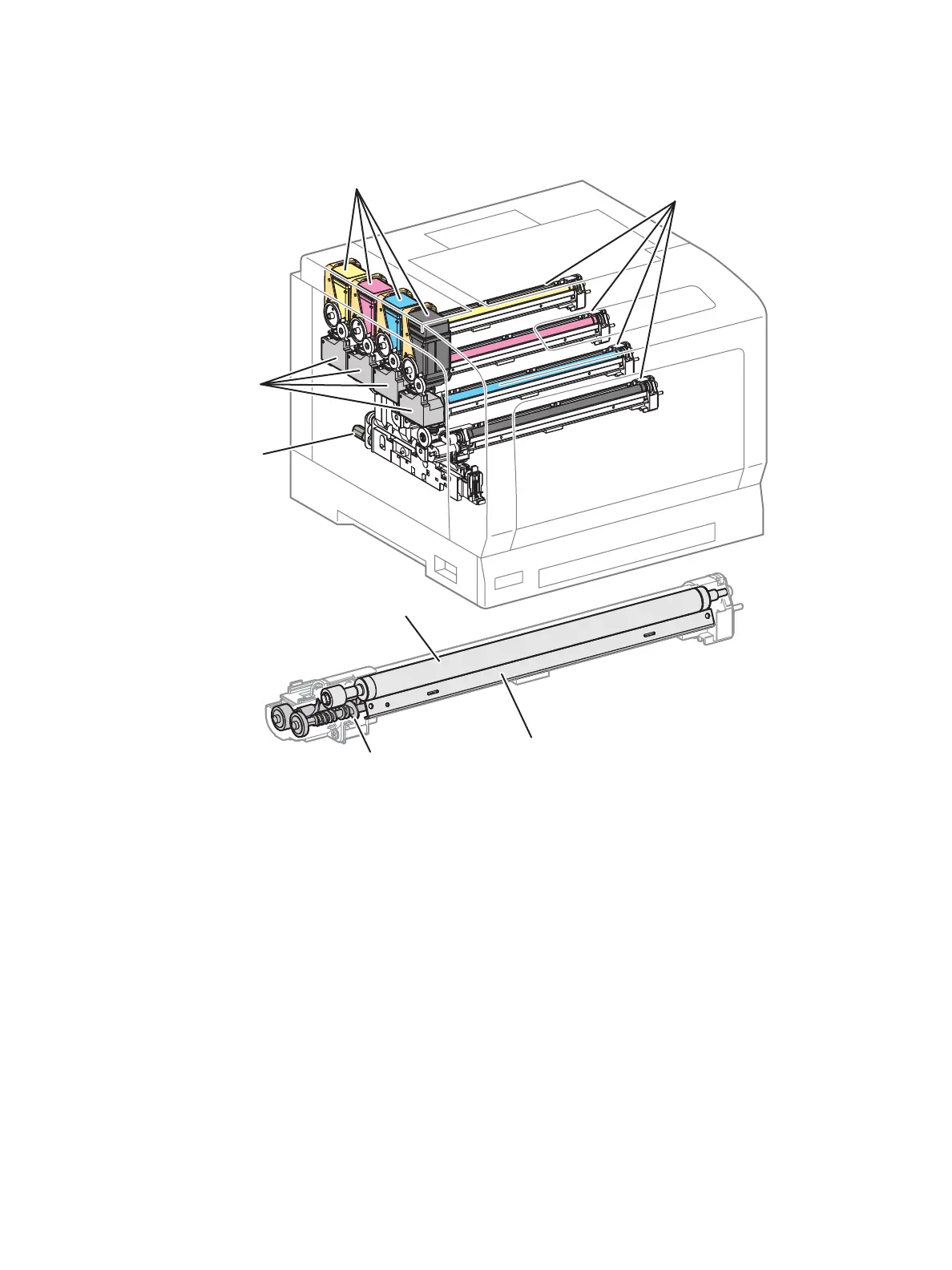

Developer Housing
Assemblies (Y, M, C, K)
Dispense Motor
Assemblies
Trickle Motor
Magnet Roller
Auger
Trimmer
Toner Cartridges (Y, M, C, K)
s7100-172

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
