Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-254
REP 14.4 Duplex In Clutch Assembly/ Duplex Drive Gear Assembly Kit
PL 14.2.20/ PL 14.2.22
1. Remove the Duplex Unit (REP 14.1 Duplex Unit on page 4-249).
2. Remove the Duplex Motor Assembly (REP 14.5 Duplex Motor Assembly on page 4-256).
Note: When removing the Idle Gear Assembly in the following step, do not drop the Swing Spring
(PL 14.2.17) and the Idle Gear 16 (PL 14.2.15).
3. Remove the KL Clip that secures the Idle Gear Assembly and remove the Idle Gear Assembly.

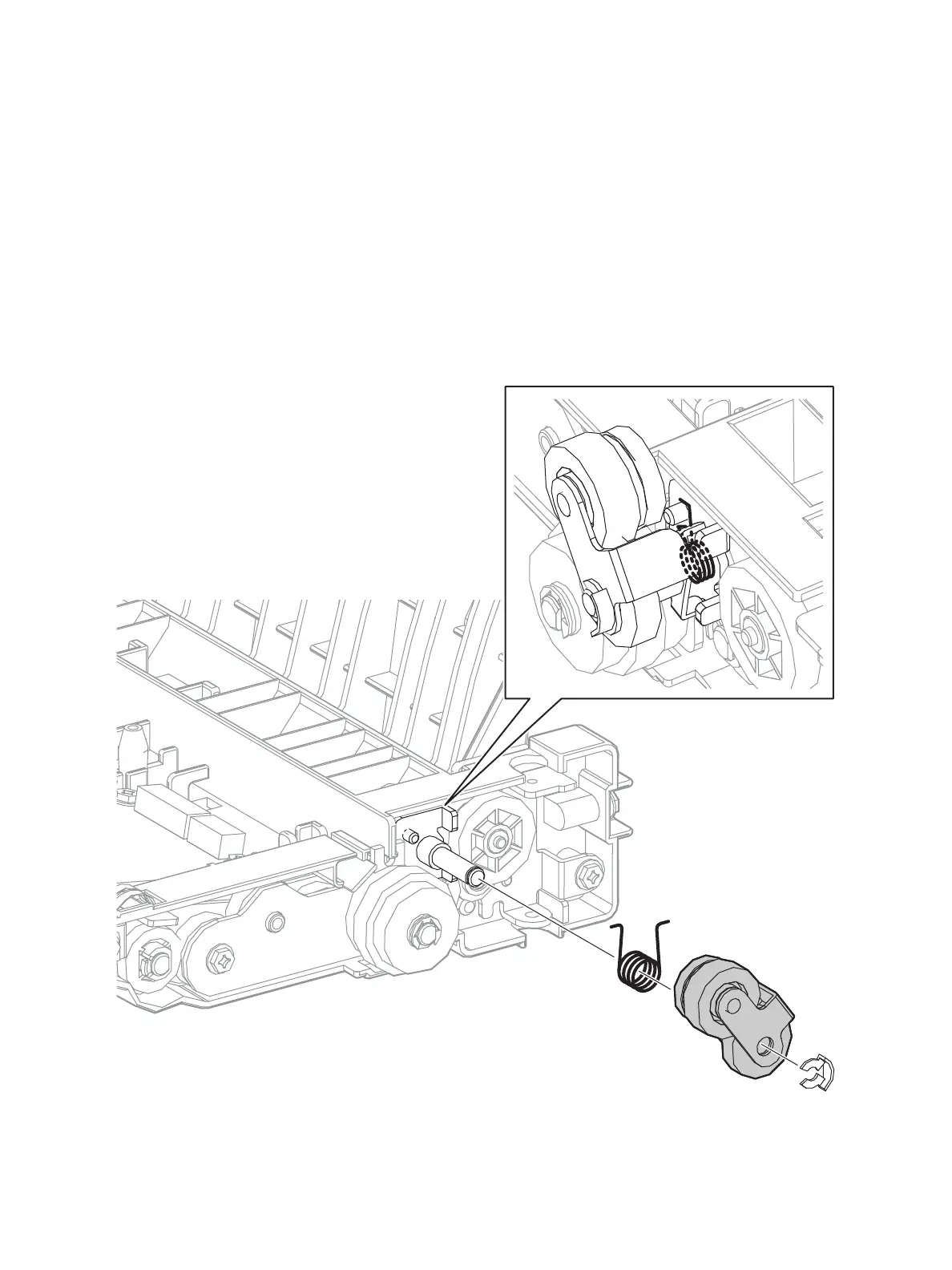

Figure 1
s7100-287
