Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-249
Duplex (Option)
REP 14.1 Duplex Unit
PL 14.1.1

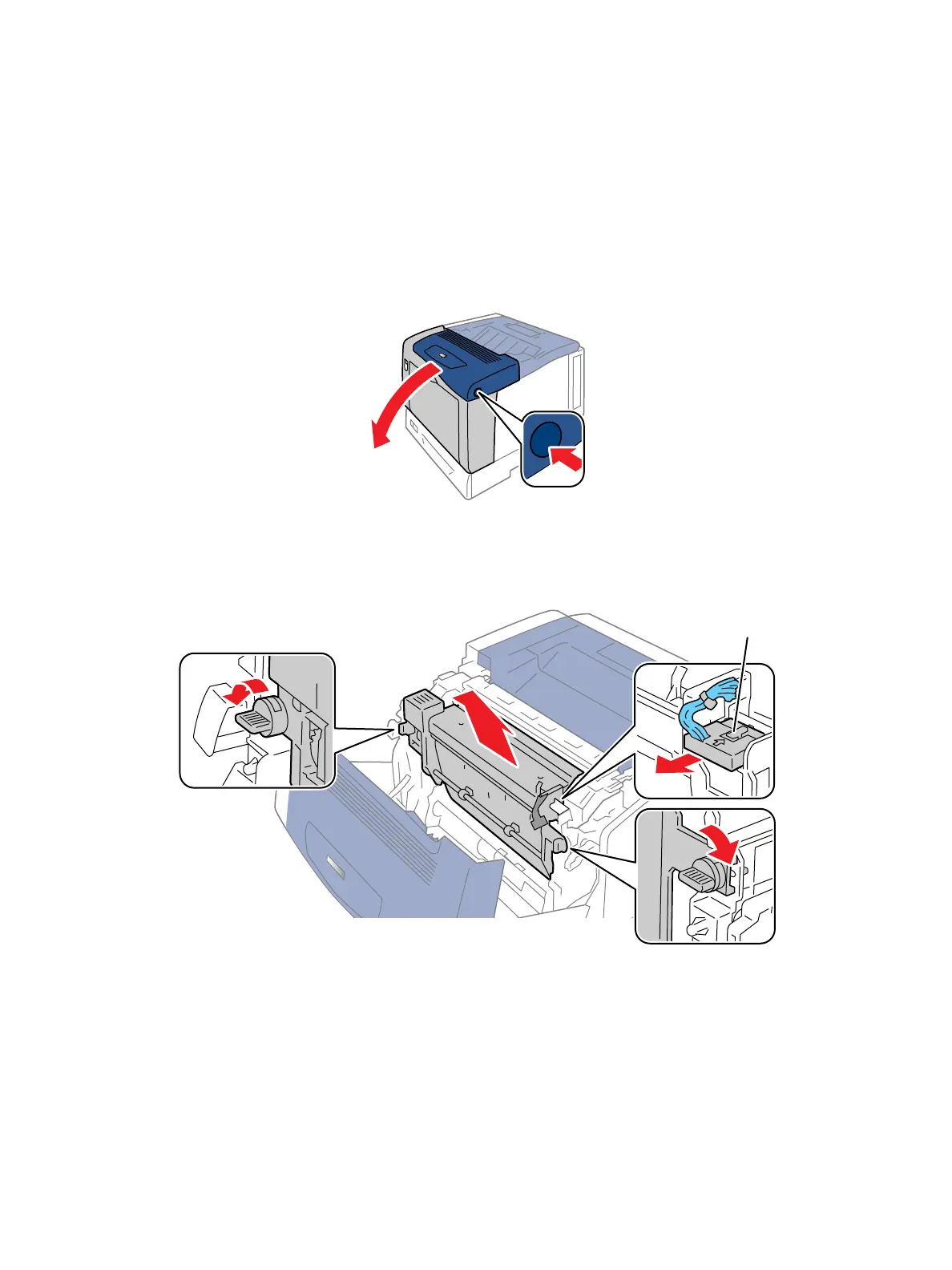

1. Press the B button and open the Front Cover Assembly (PL 1.1.38).
2. Disconnect the wiring harness connector P/J4672 that is connected to the Duplex Unit.
3. Turn the left and right Duplex Lock Levers (PL 14.2.4) 90° inward, tilt and lift the Duplex Unit to
remove.
s7100-253
2
1
s7100-466
P/J4672

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
