Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-53
REP 2.14 Feed Roller Clutch
PL 2.2.8
1. Remove Tray 1.
2. Remove the Bypass Tray Frame Assembly (REP 3.1 Bypass Tray Frame Assembly on page 4-69).
3. Remove the I/P PWB Cover Assembly (REP 1.5 Image Processor (I/P) PWB Cover Assembly on
page 4-19).
4. Remove the Rear Cover (REP 1.6 Rear Cover on page 4-20).
5. Remove the Right Side Cover (REP 1.11 Right Side Cover on page 4-27).
6. Remove the Right Feeder Cover (REP 2.3 Right Feeder Cover on page 4-40).
7. Remove the Protect Cover Assembly (REP 2.7 Protect Cover Assembly on page 4-44).
8. Remove the Right Turn Bracket Assembly (REP 2.4 Right Turn Bracket Assembly on page 4-41).
9. Remove the Feeder Assembly (REP 2.1 Feeder Assembly on page 4-37).
Note: P/J4651 has been disconnected in the Feeder Assembly removal procedure.

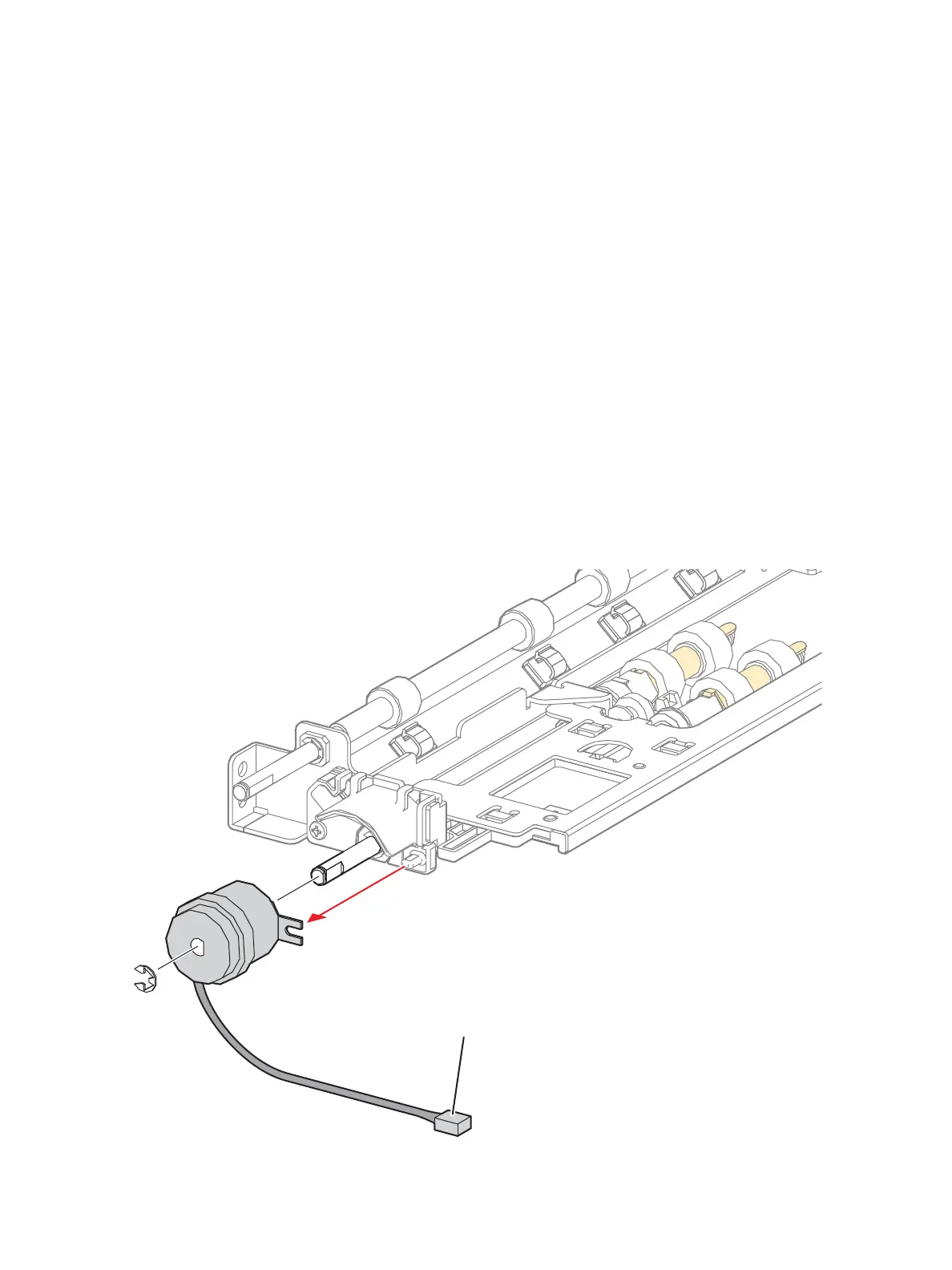

10. Remove the E-ring that secures the Feed Roller Clutch.
11. Release the convex part of the Feed Roller Clutch from the frame while pulling the Clutch out from
the Shaft.
s7100-071
P/J4651
