Xerox Phaser 7100 Service Manual

Error Troubleshooting
Phaser 7100 Service Manual Xerox Internal Use Only2-52
Sub System Check
DC676 Adjust ROS
The DC671 Regi Measure routine corrects the ROS Lead Regi Parameter when the ROS Assembly has
been replaced.
1. Enter Service Diagnostics menu (Entering Service Diagnostics on page 2-14).
2. Press Down Arrow and navigate to Subsystem Check.
3. Press Right Arrow to display the Subsystem Check DC671 RegiMeasure screen.
4. Press Down Arrow and navigate to Subsystem Check DC676 Adjust ROS.

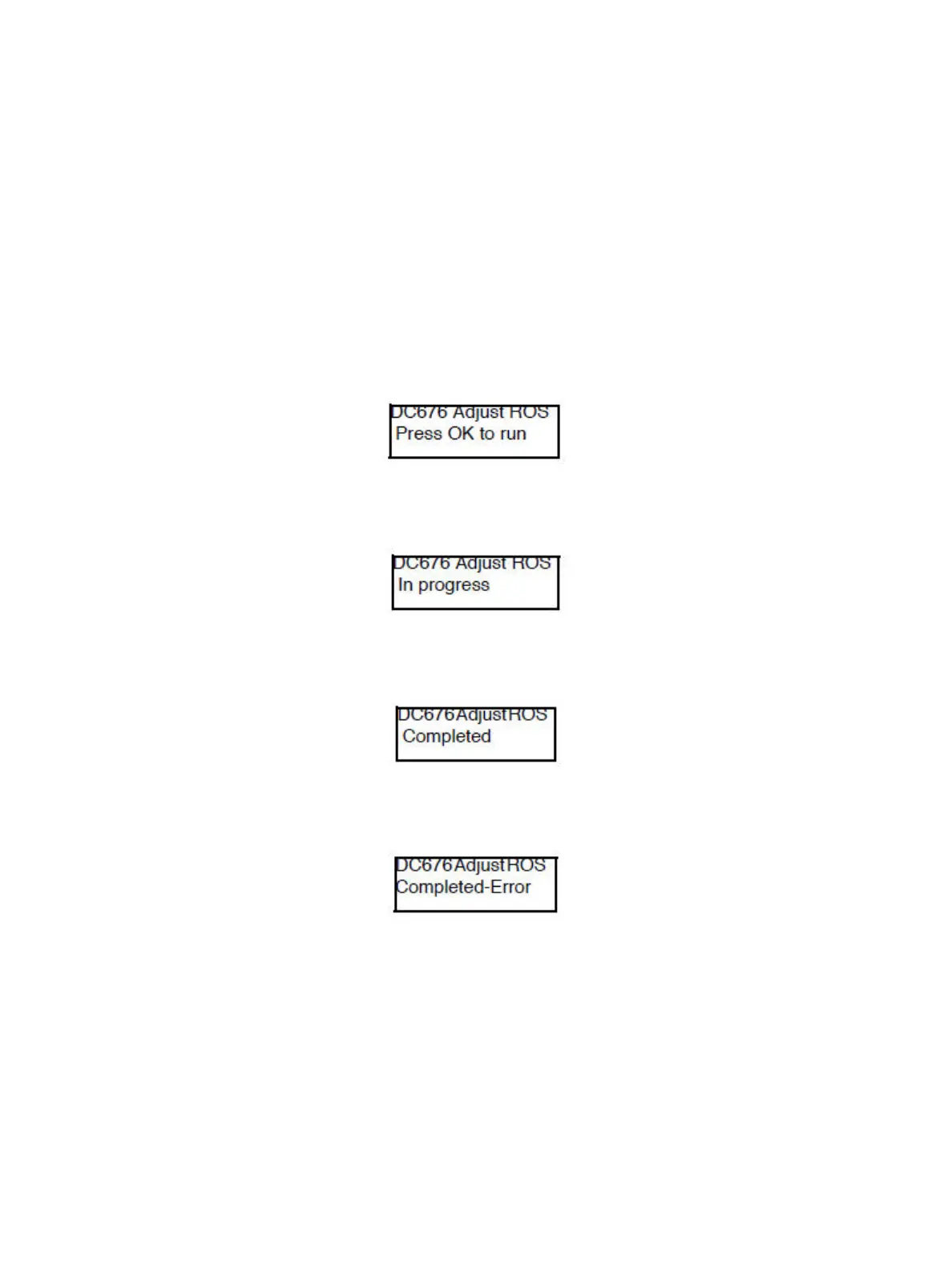

5. Press Right Arrow to display the DC676 Adjust ROS - Press OK to run screen.
6. Press OK to run the ROS Exposure Point Adjustment. As the process is running, the DC676 Adjust
ROS - In progress screen is displayed.
When the process has completed successfully, the DC676 Adjust ROS - Completed screen is
displayed.
If the process has completed with error, the DC676 Adjust ROS - Completed-Error screen is
displayed.
7. Press Menu to return to the Diagnostics - Adjustment menu screen.

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
