REP 15.13 Feeder No Paper Sensor
PL 15.2.8
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).
2. Remove the 550 Right Feeder Cover (REP 15.2 550 Right Feeder Cover on page 4-262).
3. Remove the Protect Cover Assembly (REP 15.5 Protect Cover Assembly on page 4-265).
4. Remove the Feeder Sub Assembly (REP 15.12 Feeder Sub Assembly on page 4-272).
5. Disconnect the wiring harness connector P/J123 that is connected to the Feeder No Paper Sensor.
6. Release the 3 hooks that secure the Feeder No Paper Sensor to the Feeder Sub Assembly and
remove the Sensor.

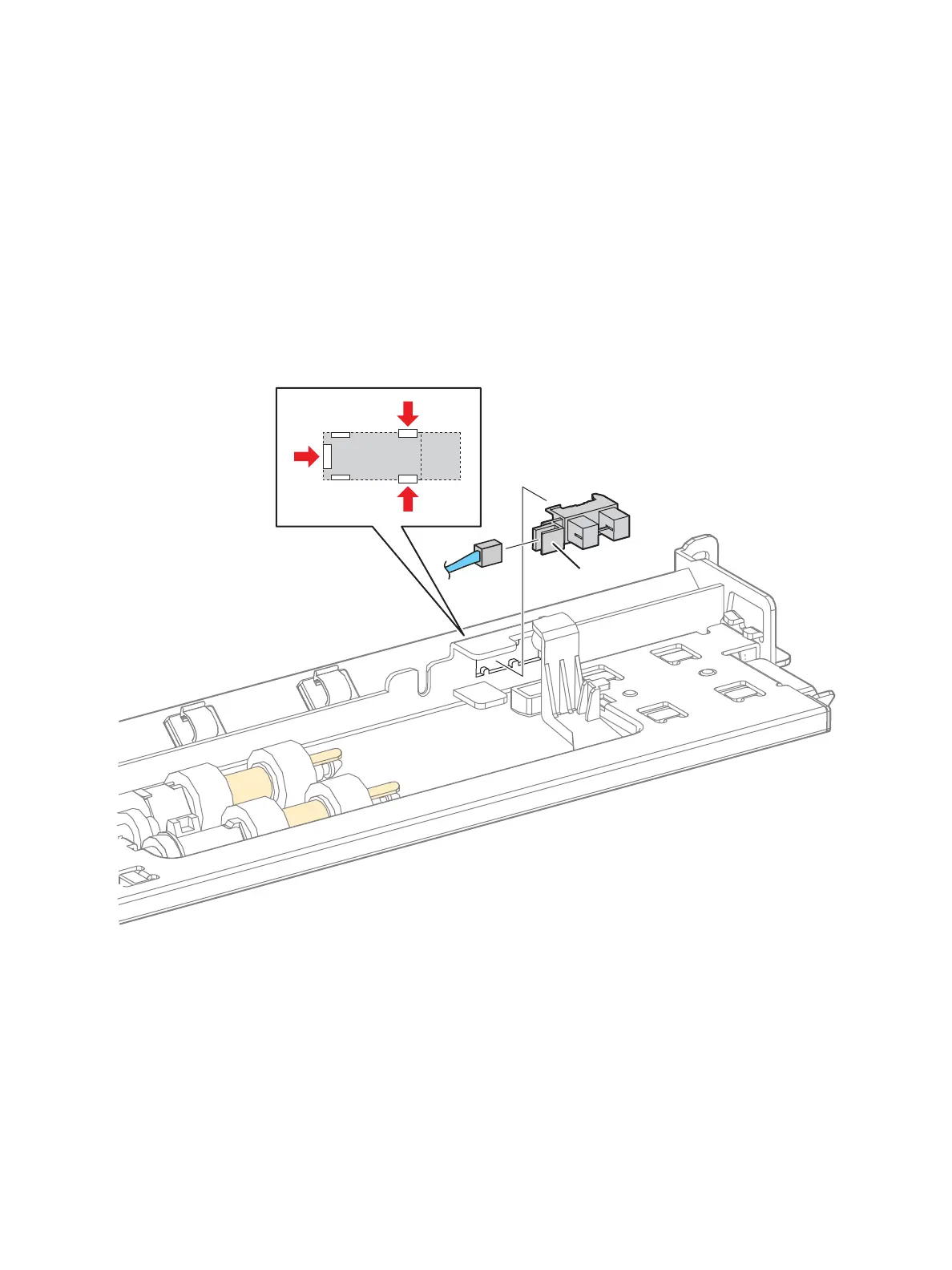

s7100-277
P/J123
