Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-282
REP 15.19 Option Feeder 2 Relay Harness Assembly
PL 15.2.26
1. Remove the 550 Left Feeder Cover (REP 15.8 550 Left Feeder Cover on page 4-268).

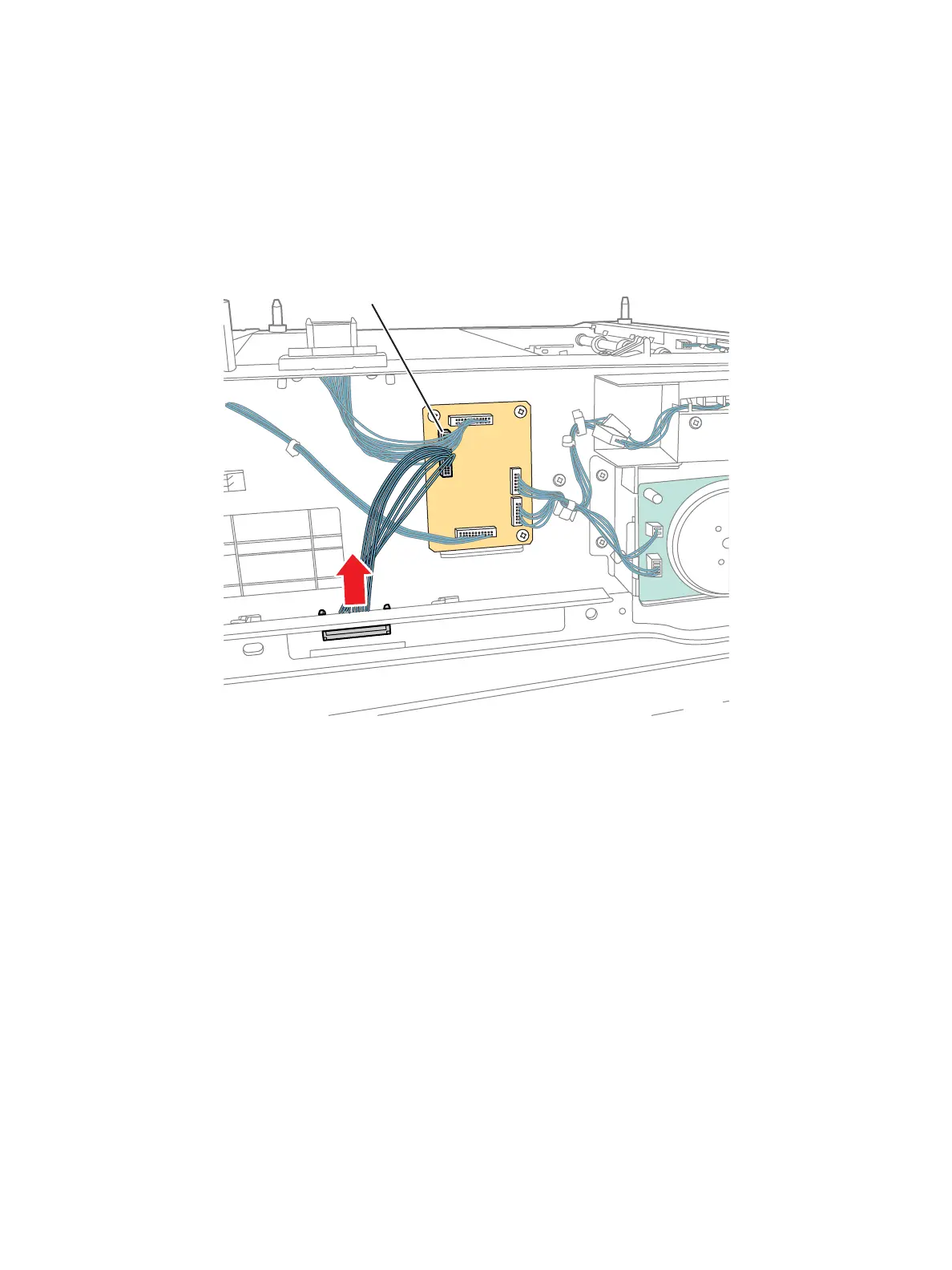

2. Disconnect the wiring harness connector P/J423 from the Feeder PWB (PL 15.2.33).
3. Release and remove the Feeder 2 Relay Harness Assembly from the 550-Sheet Feeder Frame.
s7100-357
P/J423
