Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-261
550-Sheet Feeder and Tray (Option)
REP 15.1 550-Sheet Feeder Assembly
PL 15.1.2
WARNING: The printer is heavy and should be lifted by three people. Use safety lifting and
handling techniques when moving the printer (refer to Moving the Printer on page 6-10).
1. Remove Tray 1.
2. Remove four M4 Joint Feeder Screws (PL 15.1.14) that secure the printer to the 550-Sheet Feeder
Assembly.
3. Make sure that the printer is level before lifting it directly upwards to remove it from the 550-Sheet
Feeder Assembly.

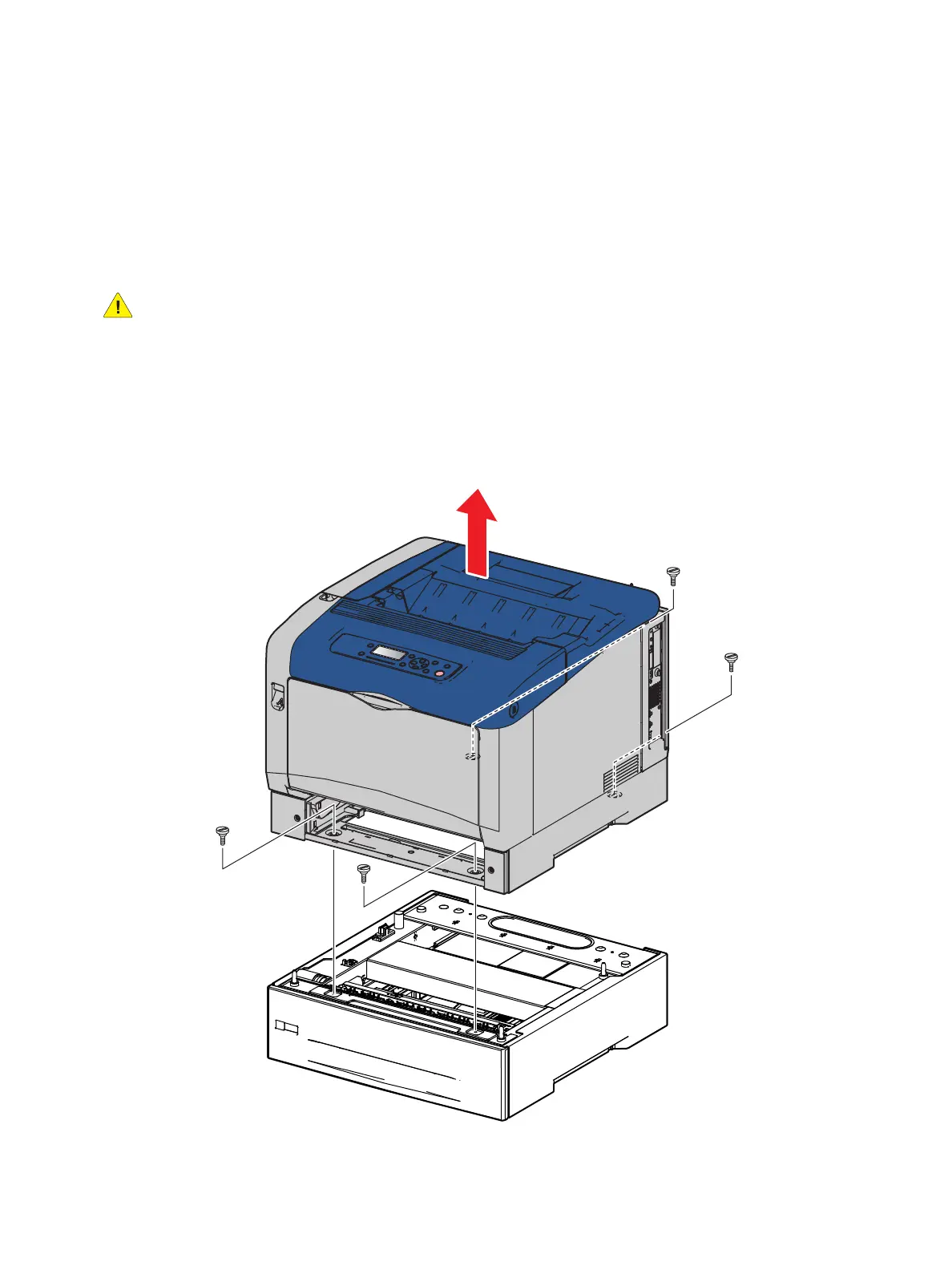

s7100-117

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
