Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-215
5. Disconnect the wiring harness connector P/J5226 that is connected to the Interlock Switch
Assembly (PL 12.2.8).
6. Disconnect the wiring harness connector P/J4682 that is connected to the Interlock Cap Switch
(PL 12.2.7).

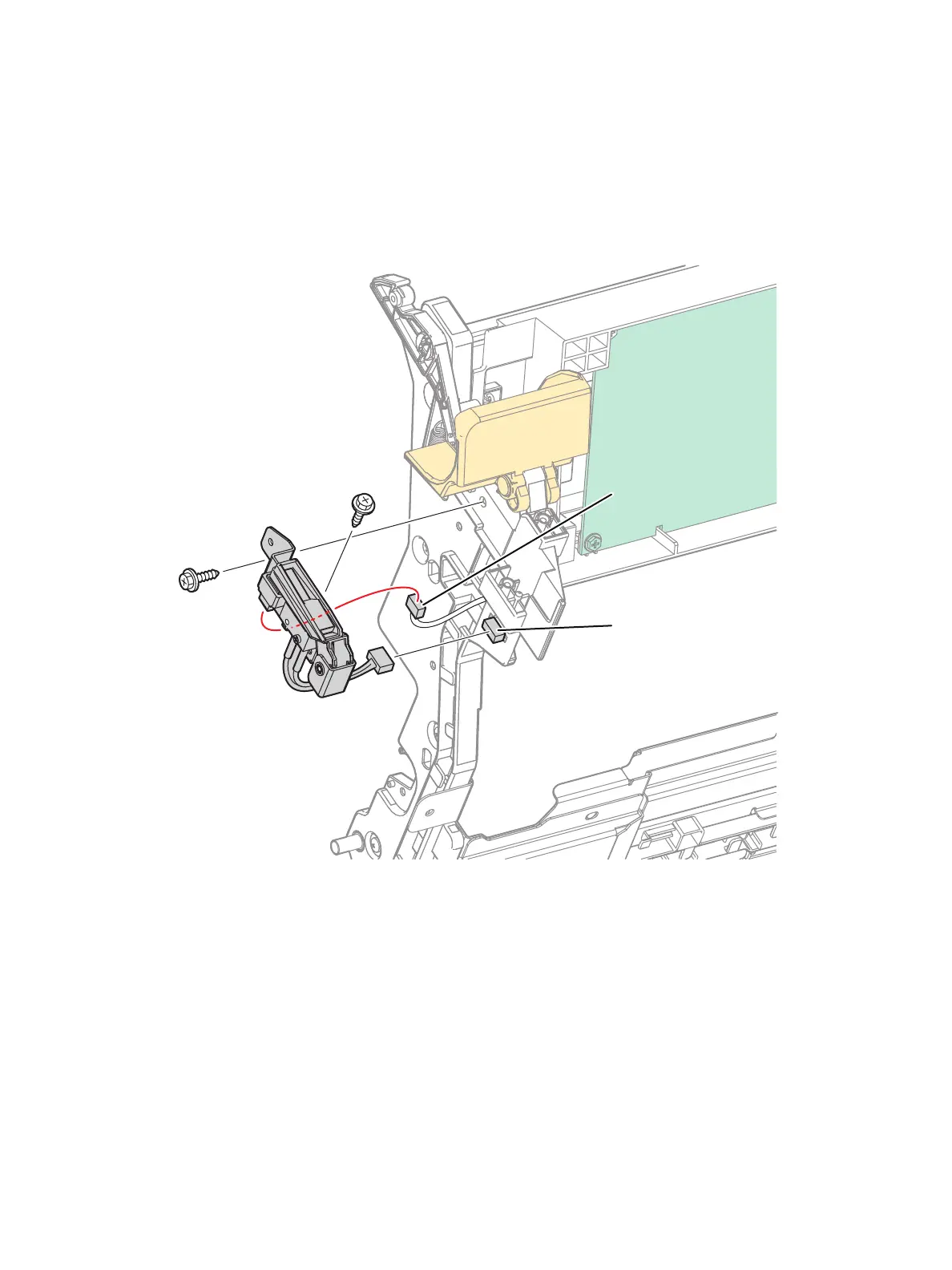

7. Remove 2 screws (silver, tapped, 8 mm) that secure the Front Cover Interlock Switch Assembly to
the Top Frame Assembly (PL13.1.7) and remove the Front Cover Interlock Switch Assembly.
To Next Page
