Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-294
5. Pinch and hold the lever of the End Guide Assembly and slide the End Guide Assembly to the front
until it can go no further.
6. Use a screwdriver to push down the Gear Sector Assembly (PL 15.3.29) and bend the Gear Sector
Assembly, then remove the boss of the End Guide Assembly from the groove of the Gear Sector
Assembly.
7. Pinch and hold the lever of the End Guide Assembly and remove the End Guide Assembly from the
paper Tray.

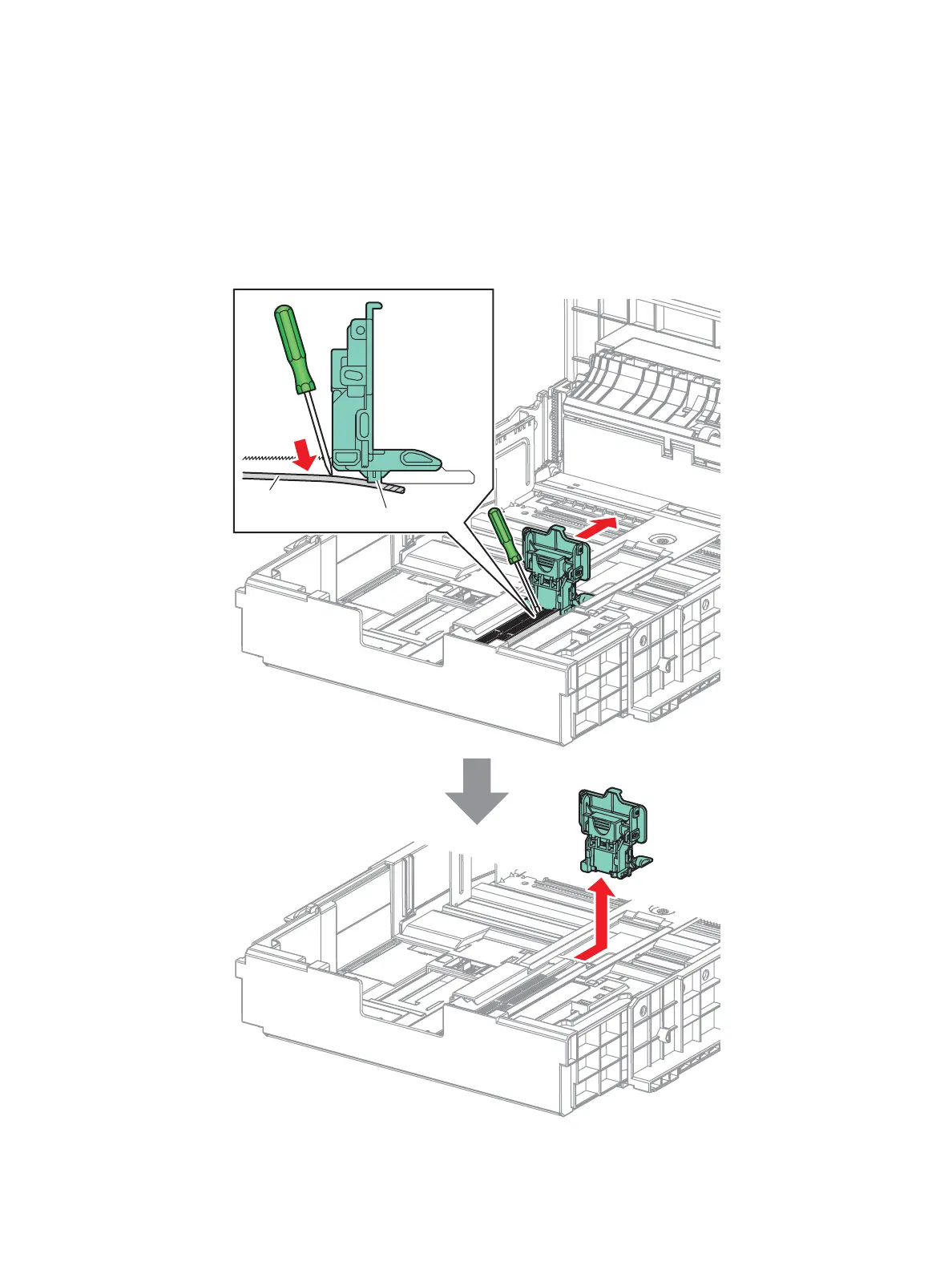

s7100-380
Gear Sector
Assembly
Boss
