Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-277

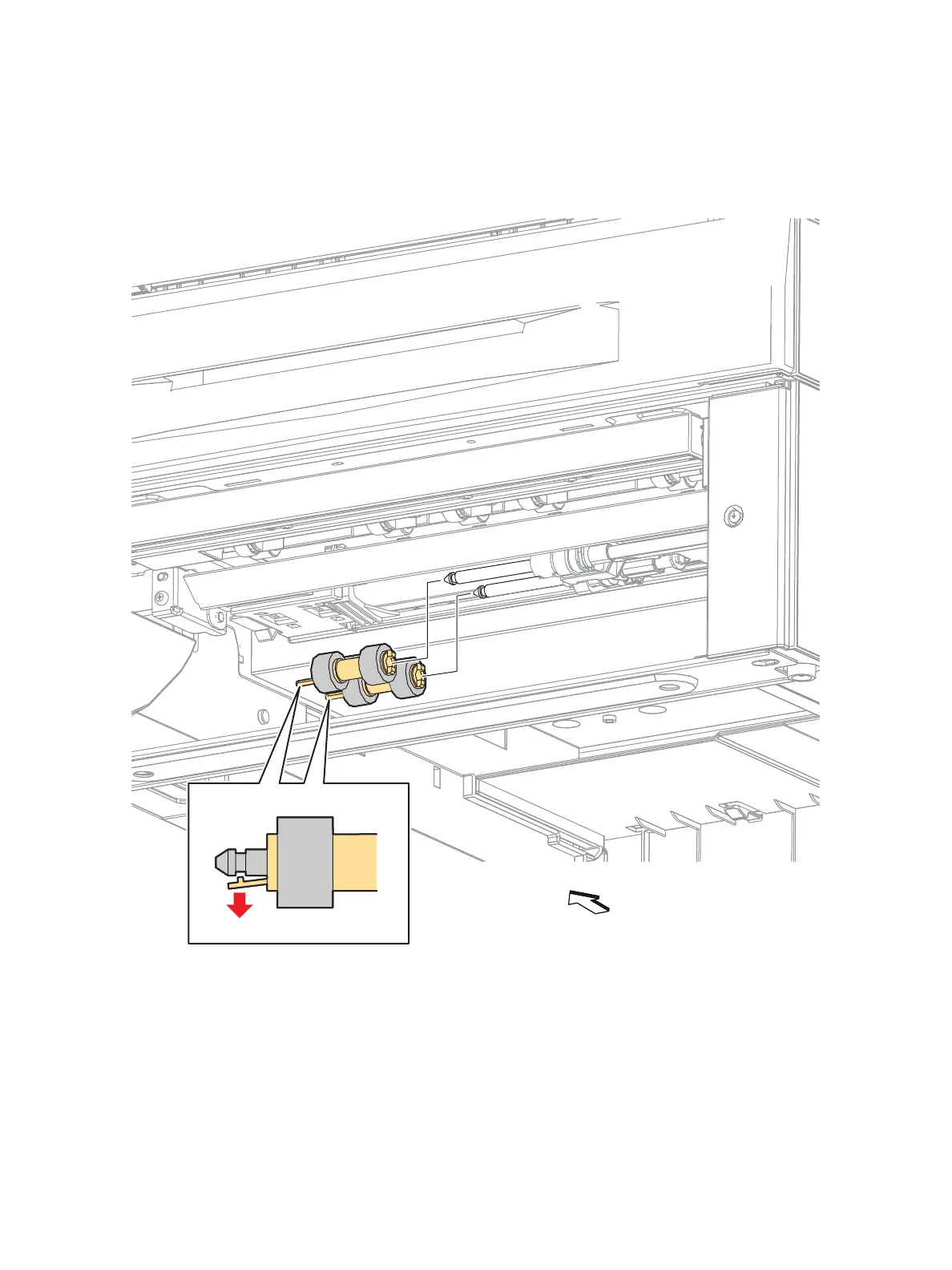

4. Release the hook that secures the front Feed Roller to the Feed Shaft (PL 15.2.18), and pull out the
front Feed Roller to remove.
5. Release the hook that secures the rear Feed Roller to the Shaft, and pull out the rear Feed Roller to
remove.
s7100-294
Front
