Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-201

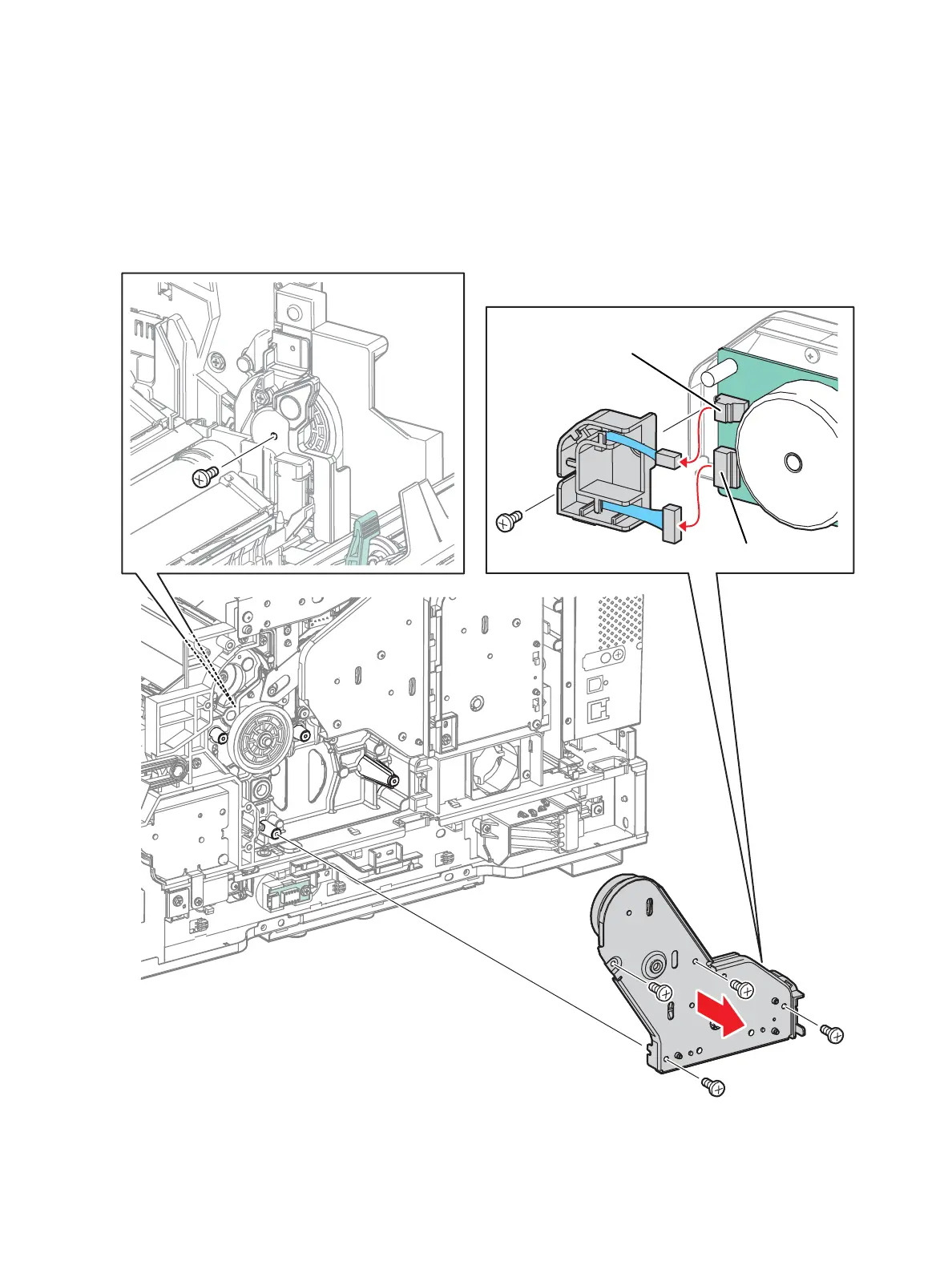

10. Remove 5 screws (silver, 6 mm) that secure the PR Drive Assembly (K) to the printer and remove
the Drive Assembly.
11. Remove one screw (silver, 6 mm) that secures the PR Harness Guide (K) (PL 11.1.11) to the PR
Drive Assembly (K) and remove the Harness Guide.
12. Disconnect the 2 wiring harness connectors P/J4724 and P/J5246 that are connected to the PR
Drive Assembly (K).
s7100-220
P/J5246
P/J4724

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
