Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-157

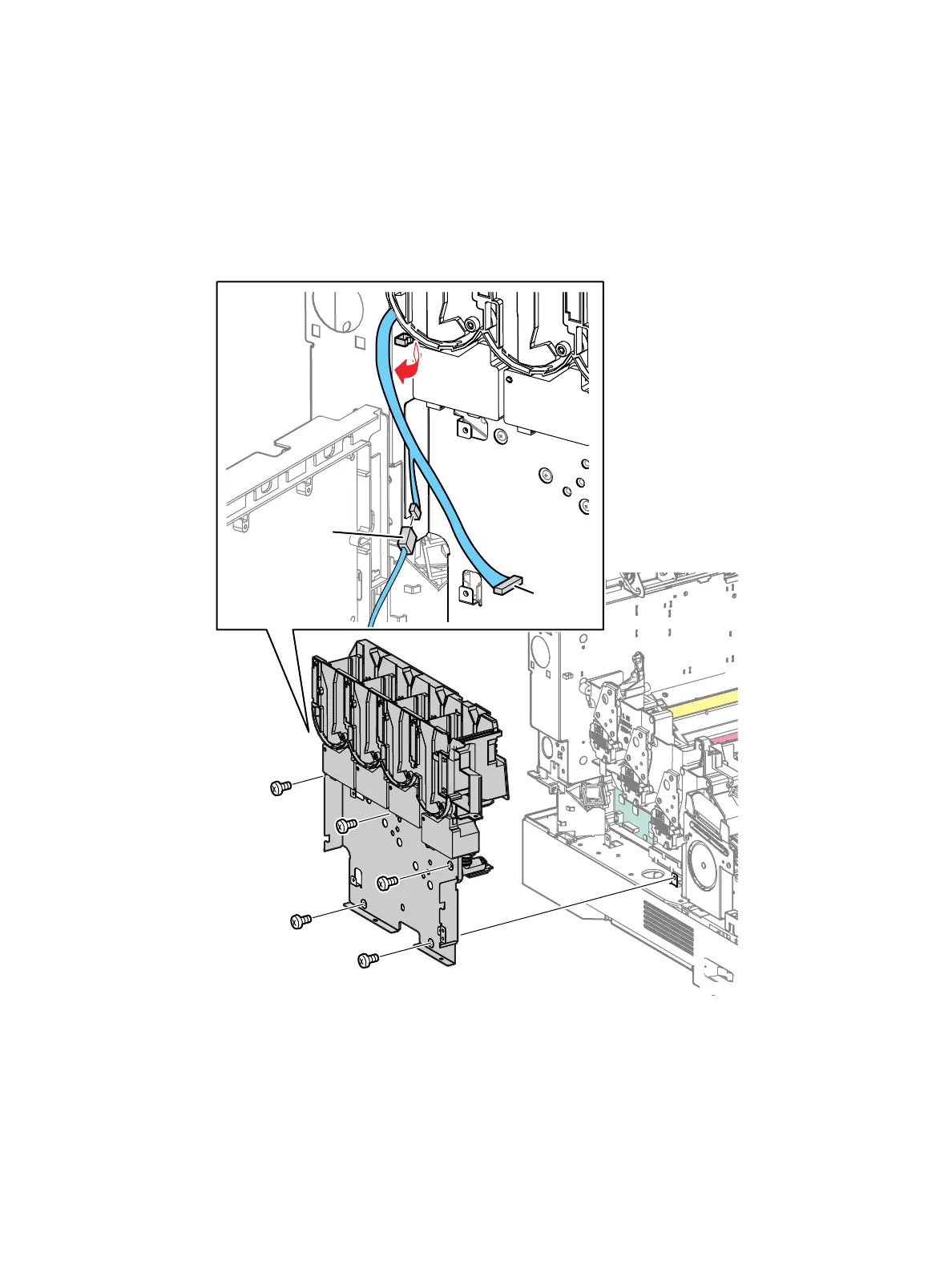

21. Disconnect the wiring harness connector P/J5291 from the harness that is connected to the MCU
Plate and remove the harness from the clamp.
22. Remove 5 screws (silver, 6 mm) that secure the MCU Plate to the printer.
Note: When removing the MCU Plate in the next step, be careful when handling the Developer
Housing Assembly to prevent from spilling the toner from the Toner Dispenser.
23. Remove the MCU Plate.
24. Remove the Dispense Guide Assembly (REP 8.4 Dispense Guide Assembly on page 4-148).
25. Remove the Dispense Motor Assembly (REP 8.6 Dispense Motor Assembly on page 4-152).
Replacement Note: When installing the MCU Plate, be careful not to get the flat cable that is
connected to the Developer Motor PWB (PL 11.1.16) pinched.
P/J5291
P/J454
s7100-148

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
