Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-156

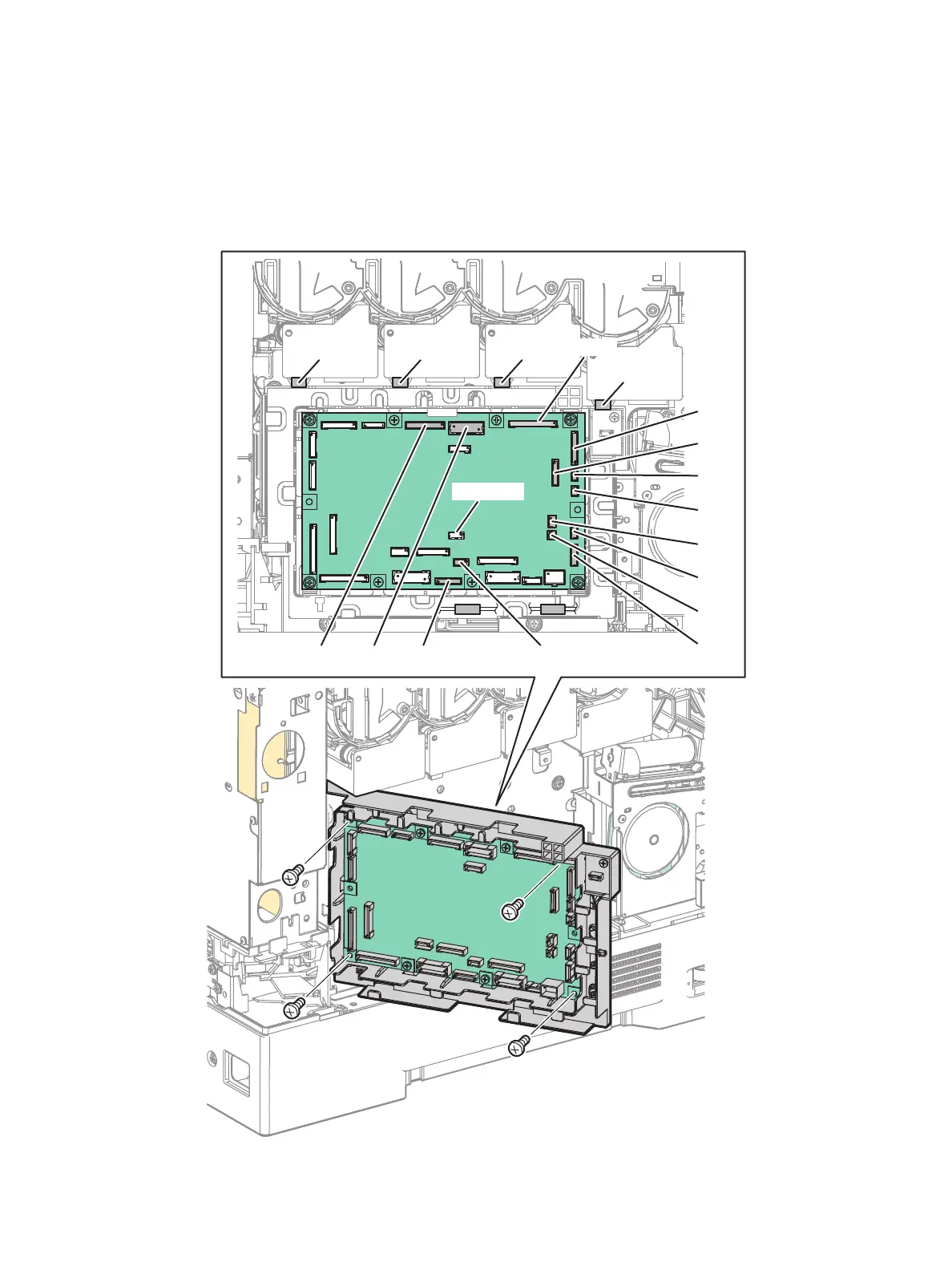

17. Disconnect the wiring harness connectors (P/J4621, P/J4622, P/J4623, and P/J4624) that are
connected to the Dispense Motor Assembly.
18. Disconnect the wiring harness connectors that are connected to the MCU PWB, except for P/J462.
19. Remove 4 screws (silver, 6 mm) that secure the MCU Harness Guide to the printer.
20. Remove the MCU Harness Guide toward the rear of the printer.
s7100-146
P/J4621
P/J4622 P/J4623
P/J4624
P/J462
P/J492 (NC)
P/J464
P/J459
P/J457
P/J460
P/J473
P/J453
P/J456
P/J458
P/J471
P/J461P/J455P/J454
To Next Page
