Service Parts Disassembly

Xerox Internal Use Only Phaser 7100 Service Manual 4-155

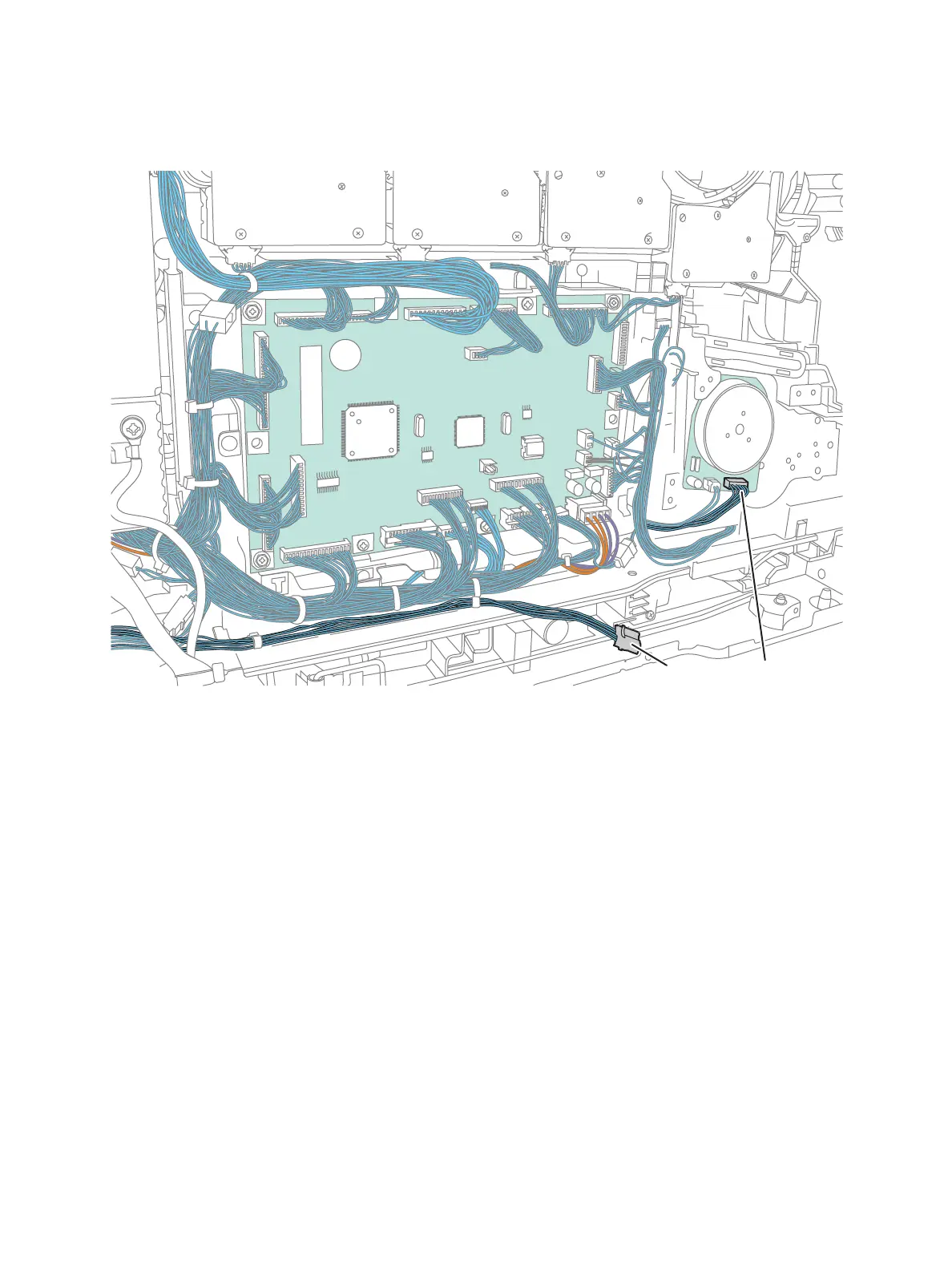

16. Disconnect the Paper Handling Motor wiring harness connector P/J4711 and Relay wiring harness

connector P/J5247.

s7100-414

P/J4711P/J5247
