Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-63

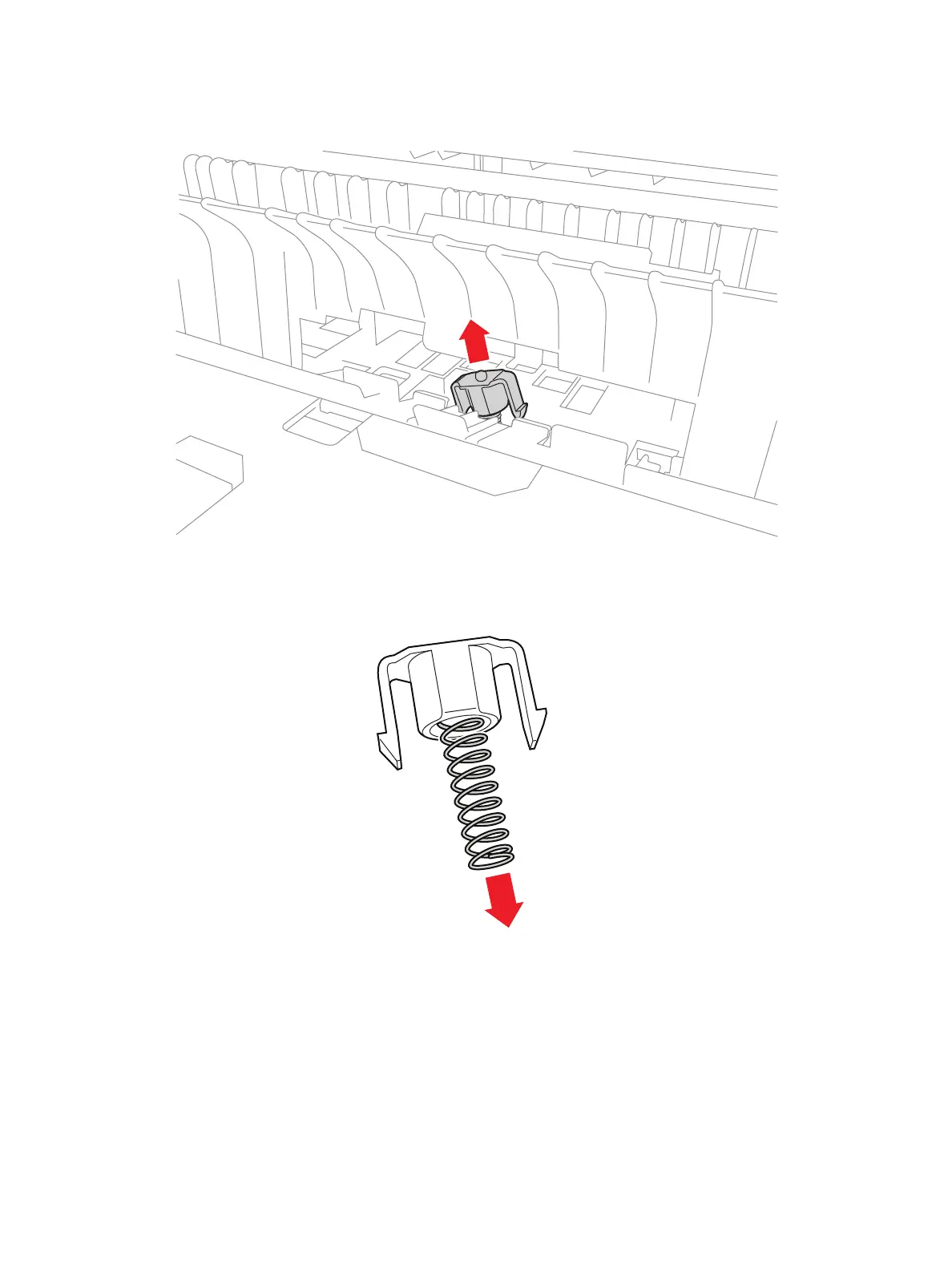

4. Press and release the Separator Spring Holder (PL 2.3.45) from the Tray.
5. Remove the Separator Spring Holder together with the Retard Spring.
6. Remove the Retard Spring.
s7100-335
s7100-336
