Phaser 7100 Service Manual Xerox Internal Use Only6-6
Note: For the following steps, only remove one Imaging Unit at a time when cleaning the laser
lens.

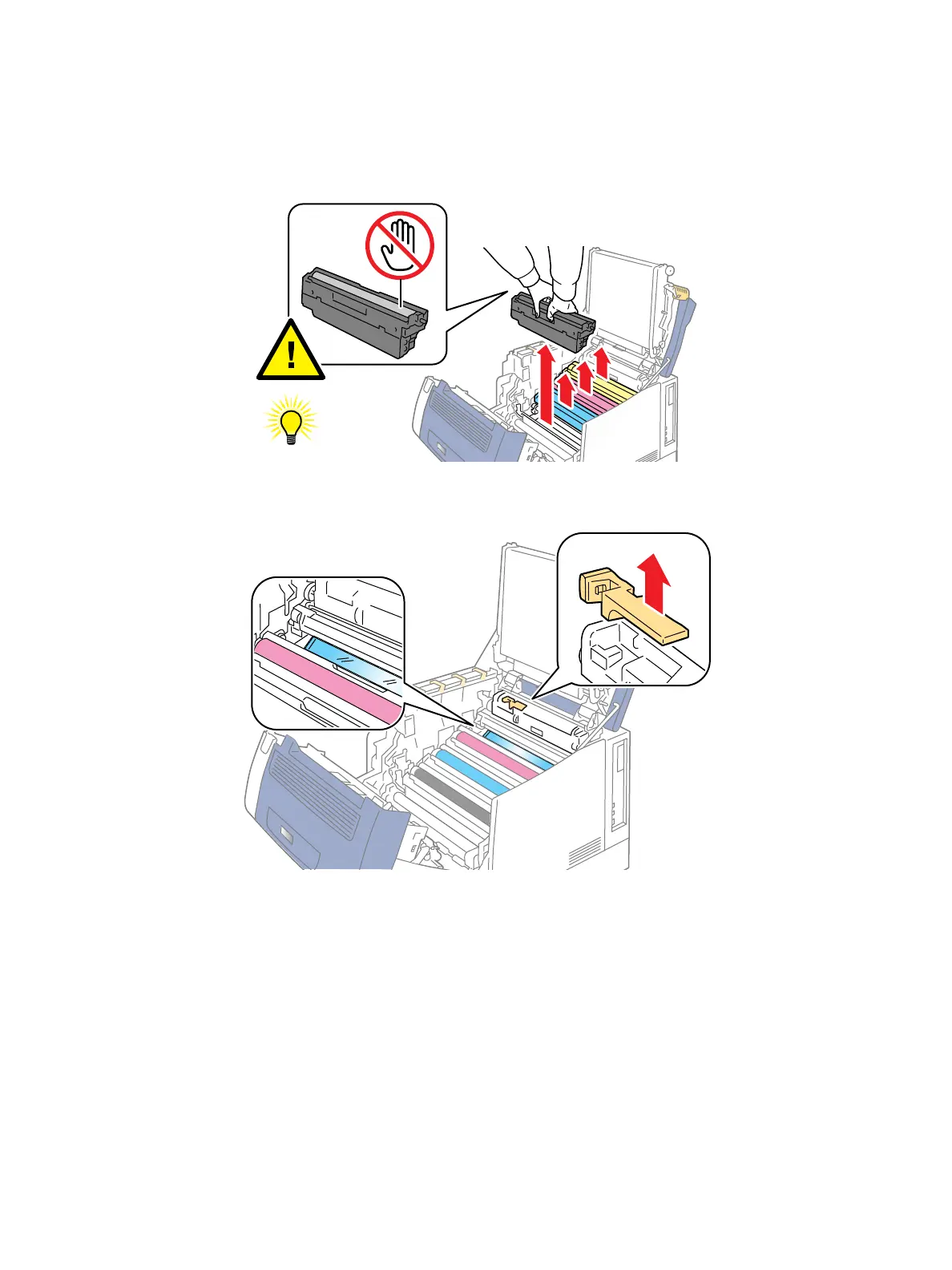

4. Lift and remove the Imaging Unit (Y/ M/ C/ K).
5. Lift and remove the ROS Cleaning Tool.
s7100-257
s7100-439
