Xerox Phaser 7100 Service Manual

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-79
Feeder Motor (Option)

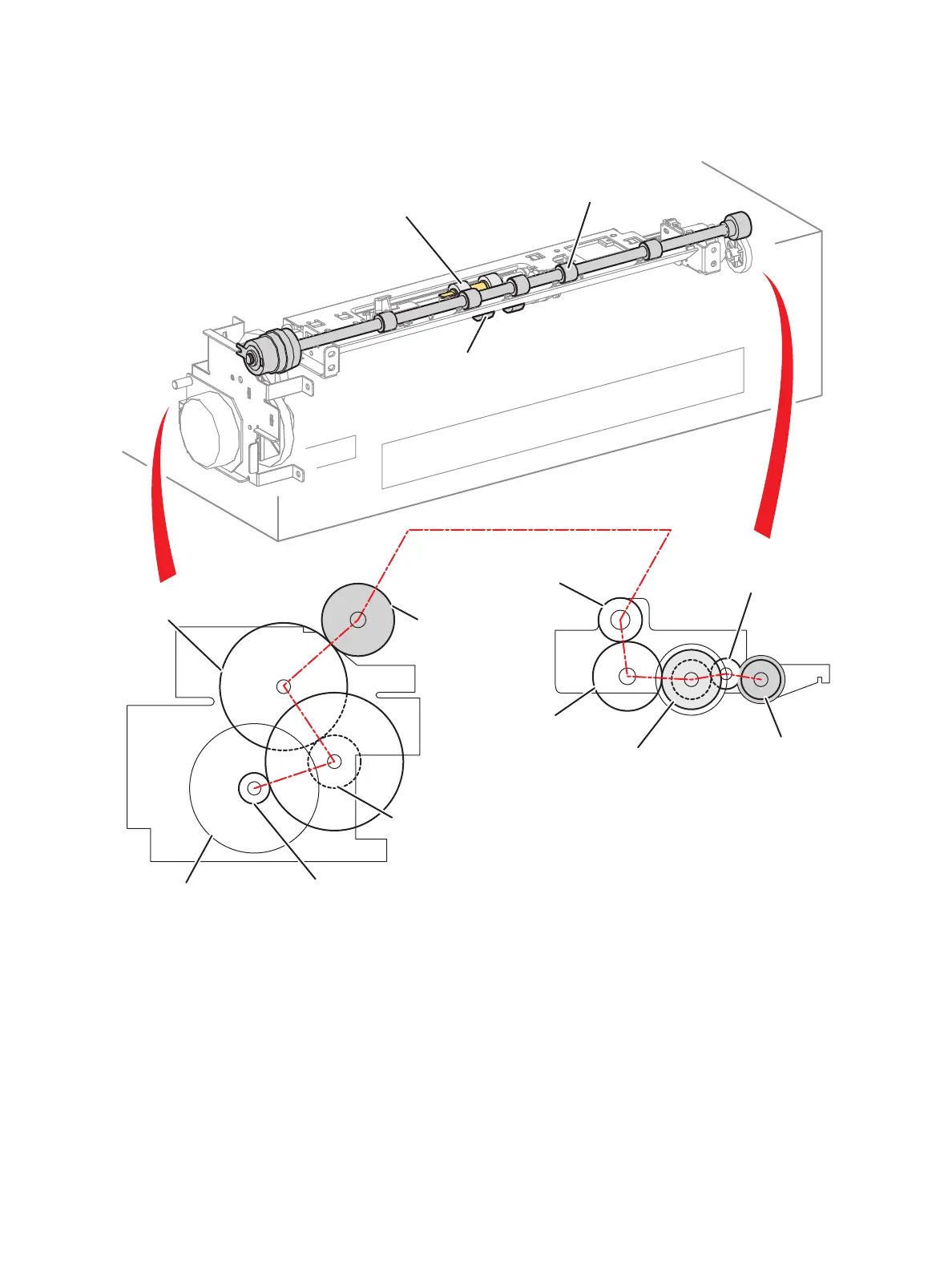

• Option Drive Assembly Components
–Feeder Motor
– Idler Gear 21-119
–Idler Gear 57
• Nudger Support Assembly Components
– Nudger Idler Gear
–Nudger Gear
Turn Gear Assembly 17
Feed Roller Clutch
Ў
Feed Roller
Idler Gear 28 R
Nudger Idler Gear
Feed Motor
Turn Roller Clutch
Ў
Turn Roller Assembly
Idler Gear 21-119
Idler Gear 57
Paper Handling Pinion Gear
Turn Roller Assembly
Feed Roller
Nudger Roller
Nudger Gear
Ў
Nudger Roller
s7100-331
