Image Quality
Xerox Internal Use Only Phaser 7100 Service Manual 3-5
Imaging Unit Fuser Transfer
Roller

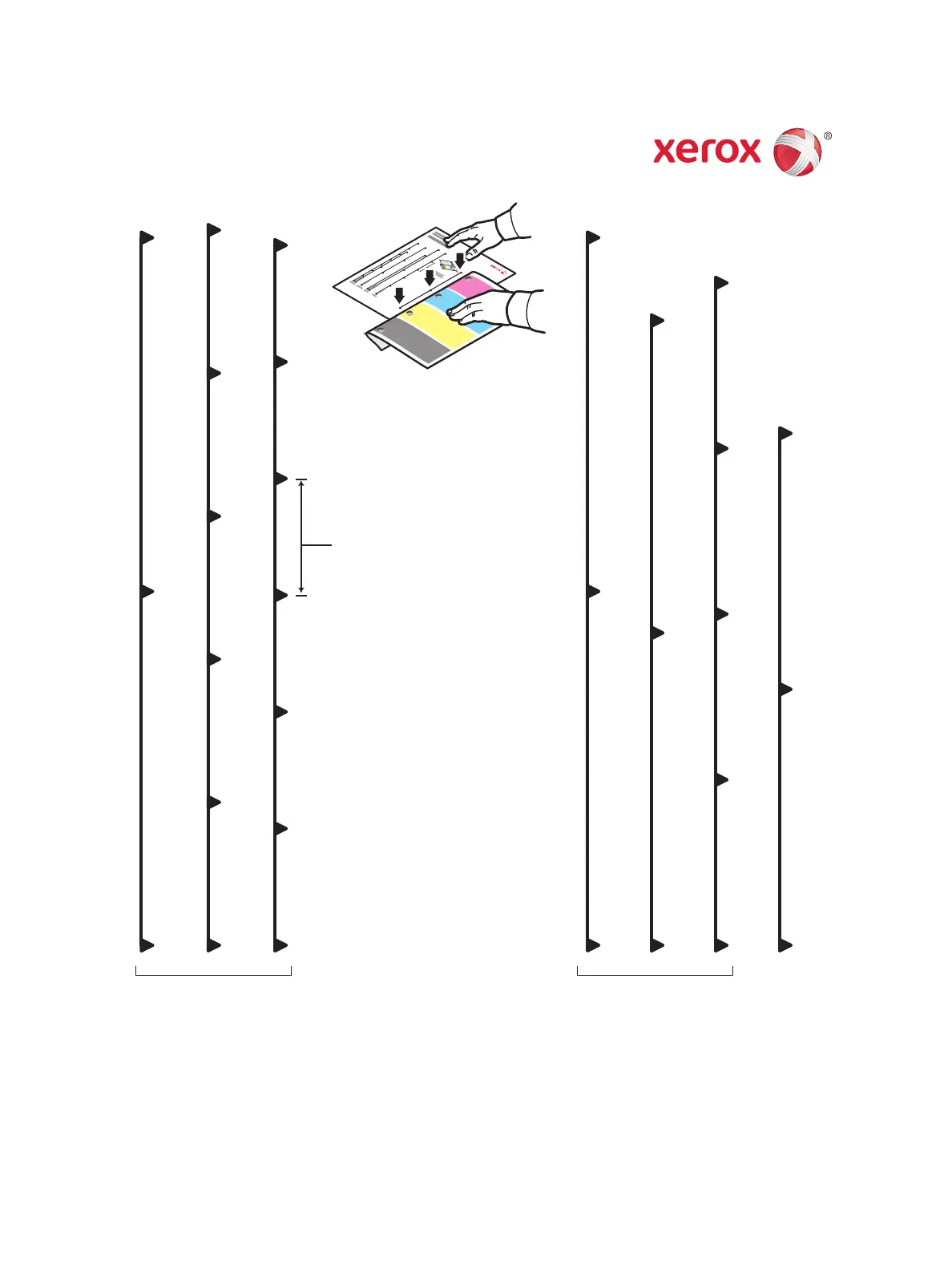

Match a set of repeating defects in
your print to the corresponding marks
on the appropriate vertical line. This
line indicates the item, such as the
transfer roller, causing the defect.
Note: The repeating defect must be
measured accurately to ensure the
correct item is replaced.
For example, the distance between
these two marks represents a defect
repeating every 31mm; this is caused
by an imaging unit. When correcting a
repeating defect by replacing a routine
maintenance item, follow the
instructions included with the routine
maintenance item.
Note: Print the Supplies Usage Page
for part numbers.
94 mm (3.7 in.) 94 mm (3.7 in.) 83 mm (3.3 in.) 44 mm (1.7 in.) 68 mm (2.7 in.) 38 mm (1.5 in.) 31 mm (1.2 in.)
Xerox
®
Phaser
®
7100
Repeating Defects
s7100-371

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
