Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-23
6. Close the Top Cover Assembly Frame.

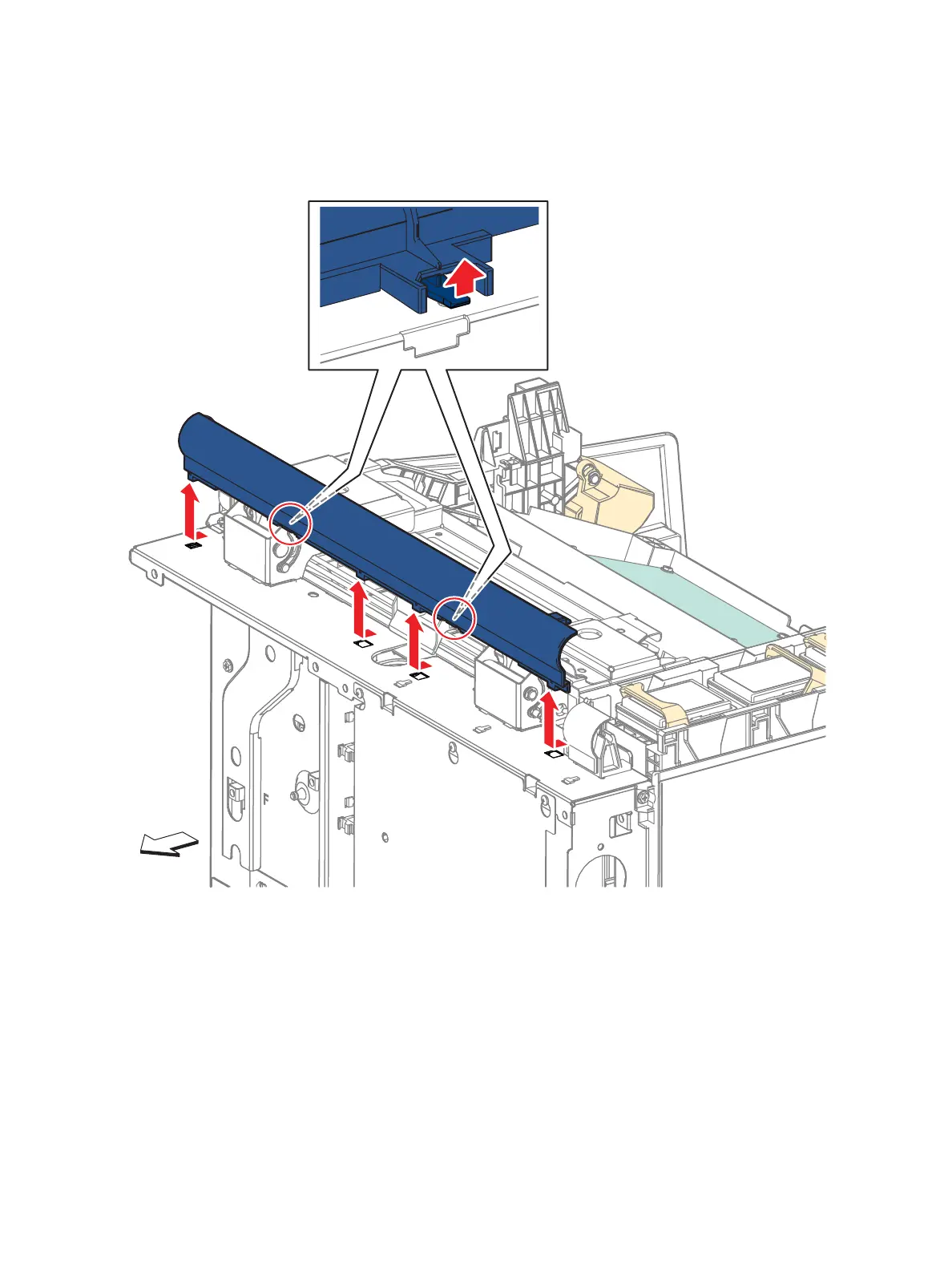

7. Release the 2 hooks on the bottom of the Rear Upper Cover while sliding and lifting the Cover
toward the rear of the printer to remove.
s7100-046
Rear
