Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-38
11. Shift the Feeder Assembly toward the front to release the 2 bosses from the frame.

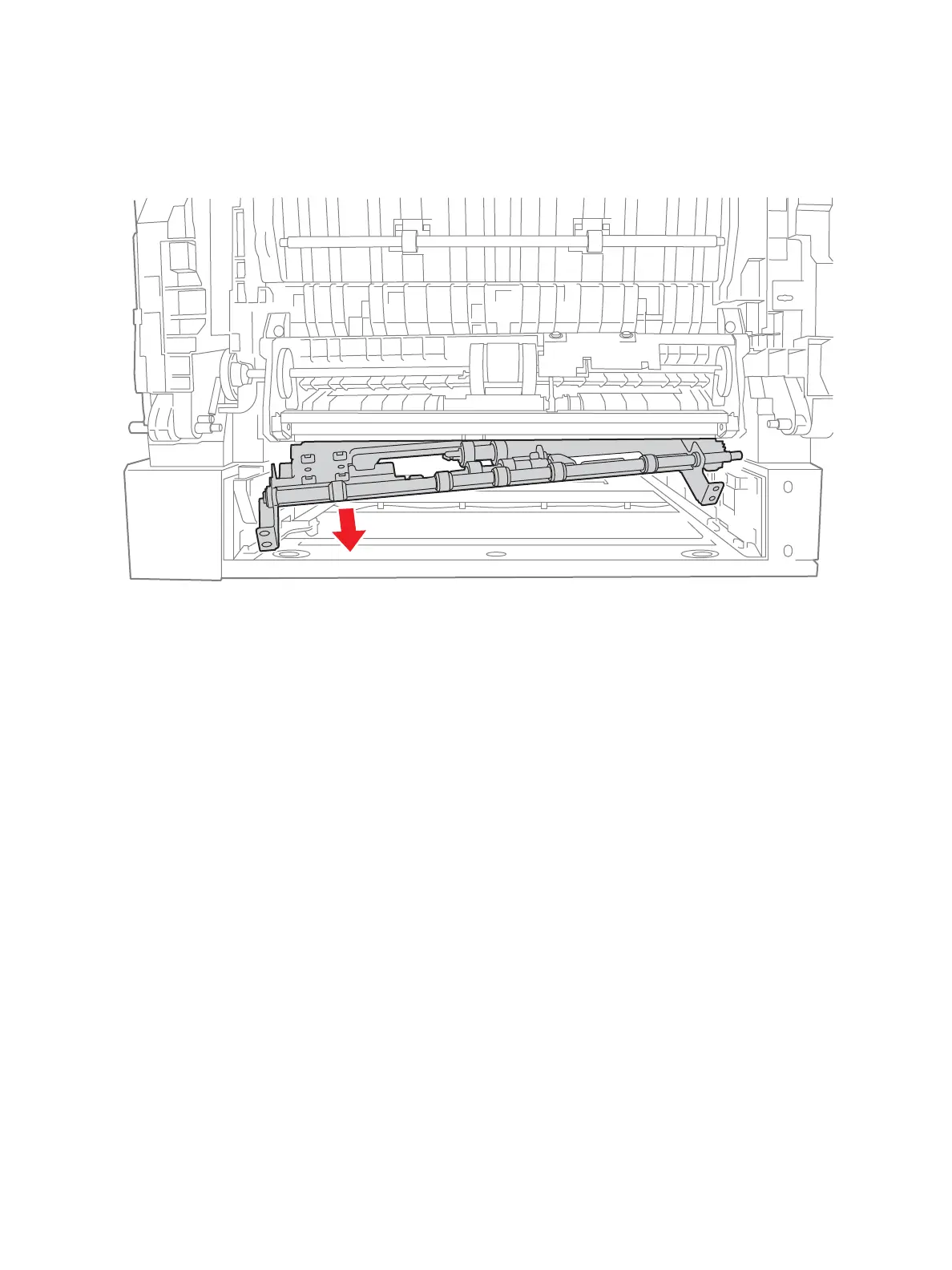

12. Pull the left side forward while pushing the right side of the Feeder Assembly toward the rear and
remove the Feeder Assembly.
Replacement Note: Be sure to insert the right side of the Feeder Assembly first then the left side.
Move the left side forward and lift the right side and place the Feeder Assembly in position.
To Next Page
