Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-45

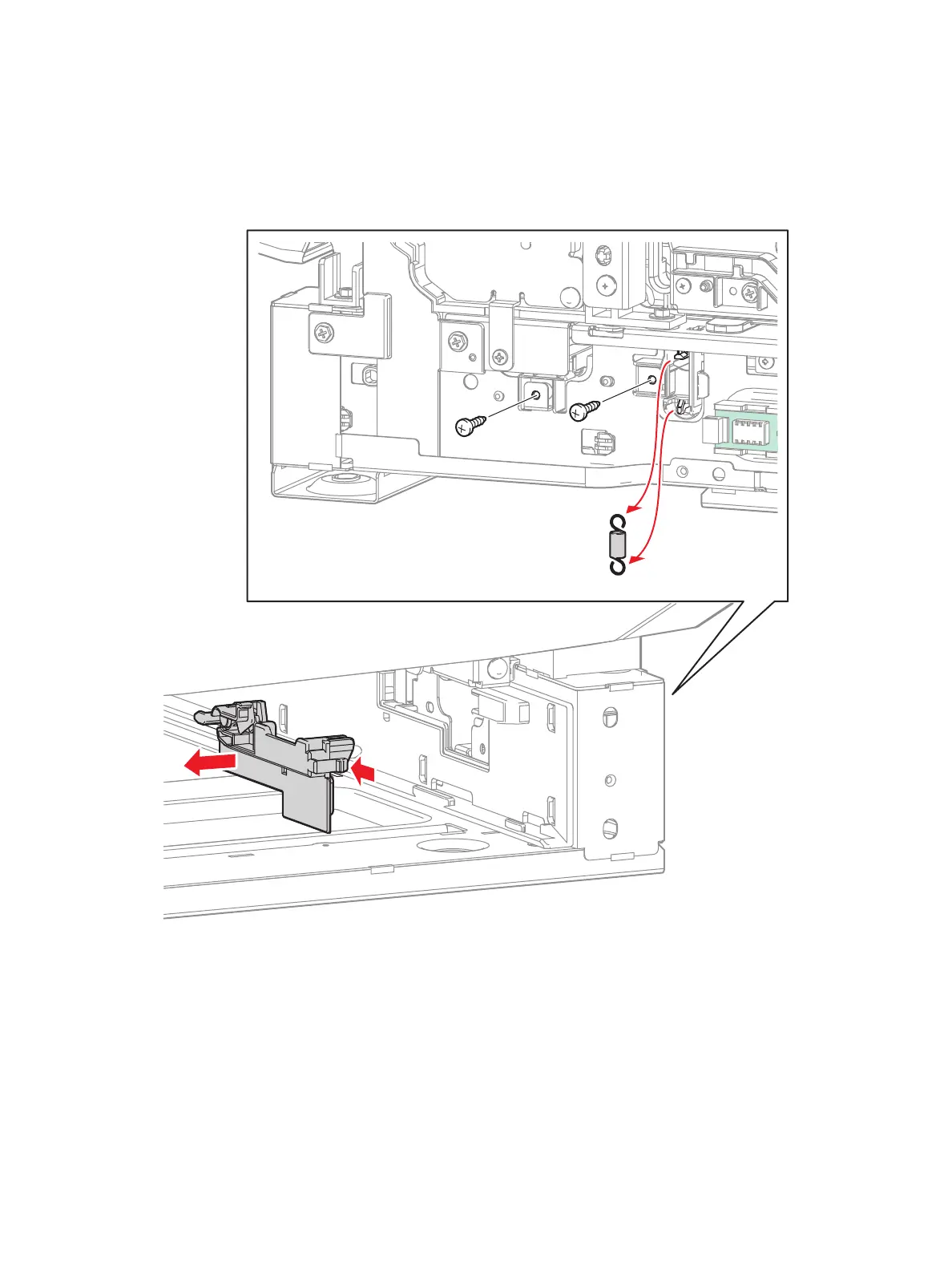

7. Remove the Nudger Spring (PL 2.1.7) from the Right Tray Guide Assembly (PL 2.1.5) and the
Protect Cover Assembly (PL 2.1.8).
8. Remove 2 screws (silver, tapped, 10mm) that secure the Protect Cover Assembly.
9. Release the hook that secures the Protect Cover Assembly while sliding the Cover out to remove.
To Next Page
