Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-56
Replacement Notes:

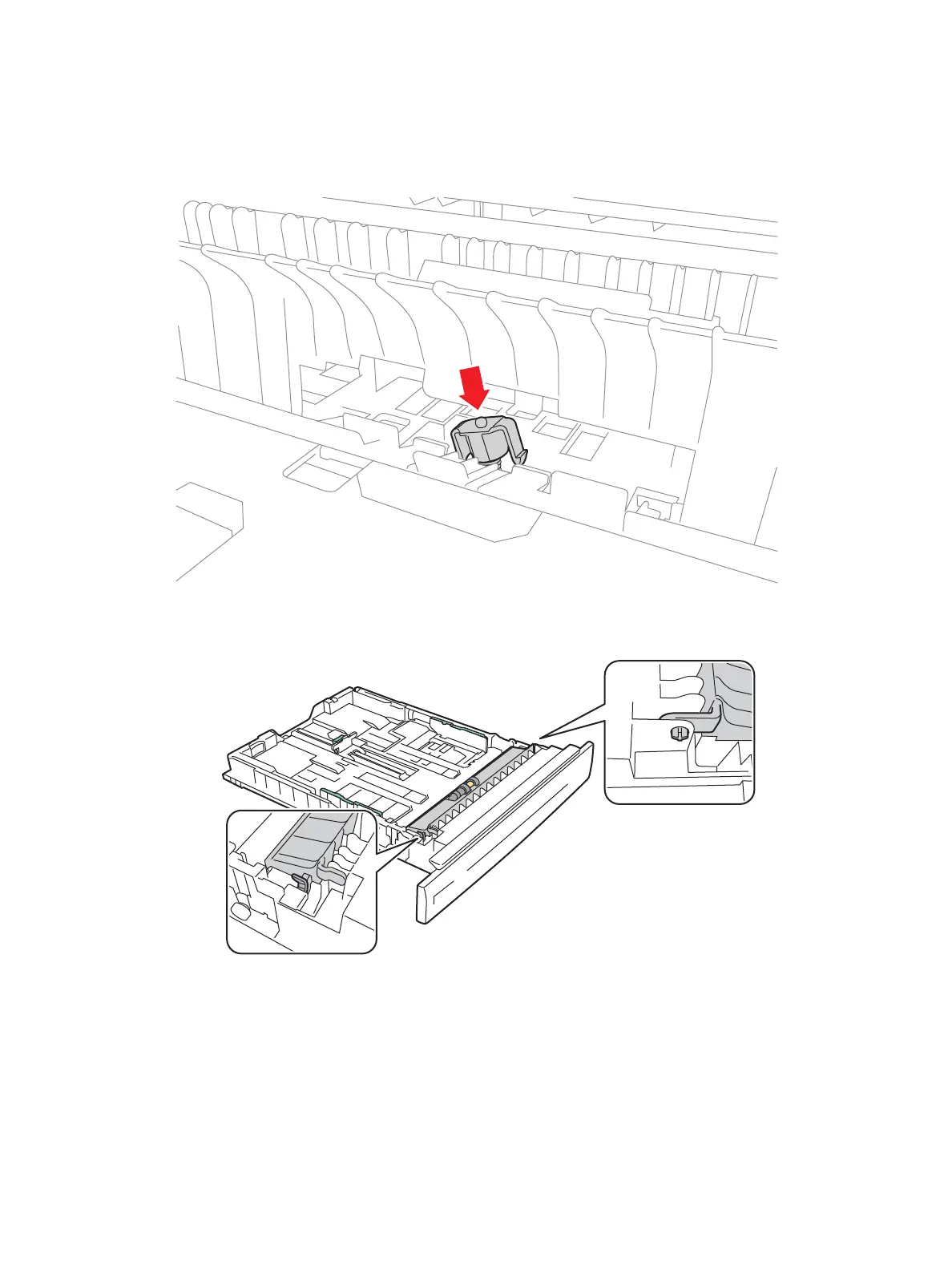

• Be sure to secure the Retard Spring (PL 2.3.16) prior to installing the Retard Roller
Assembly.
• Make sure the latch is completely seated when installing the Retard Chute.
s7100-455
s7100-473
