Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-58

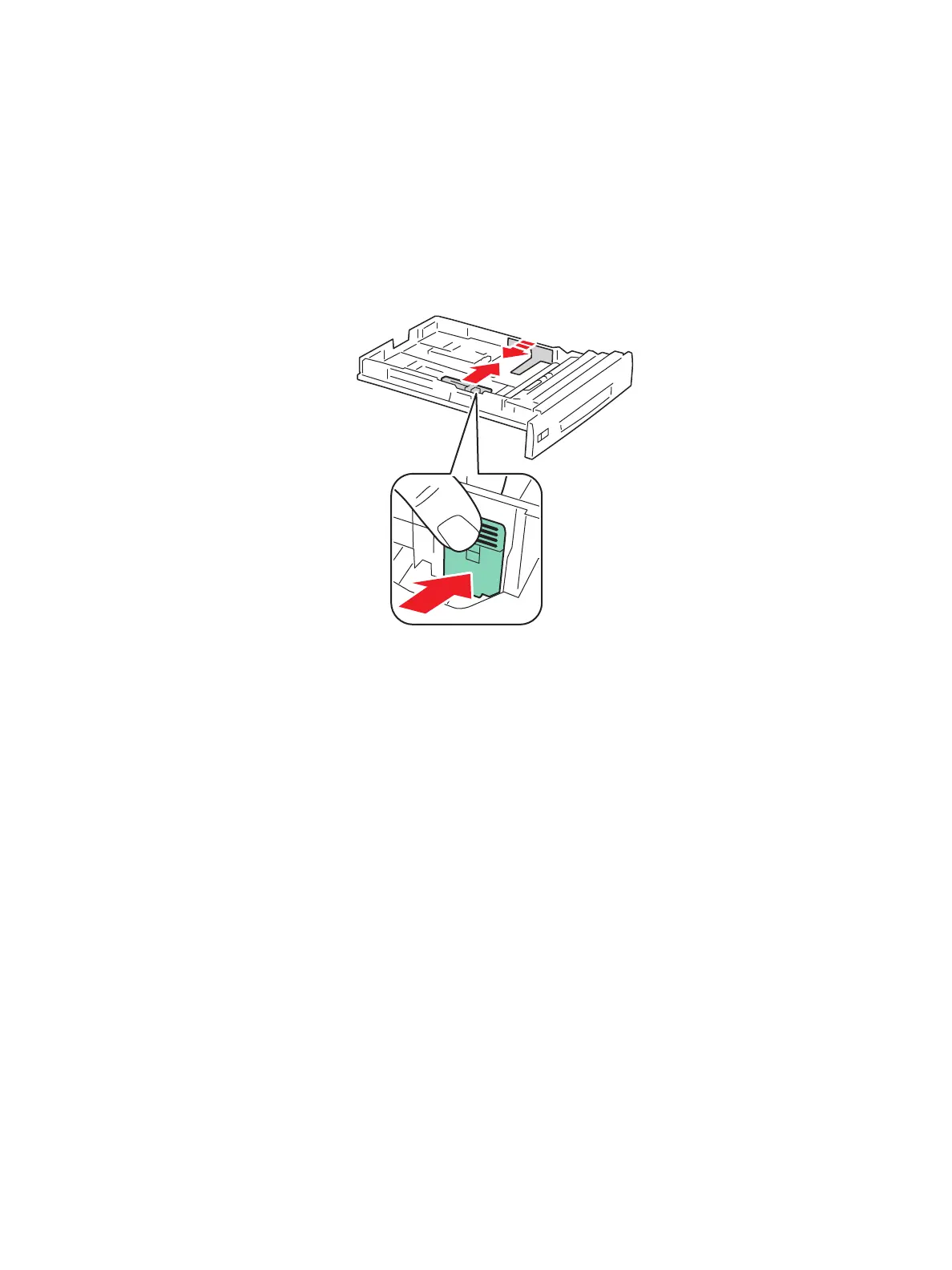

4. Press the knob of the Right Side Guide Assembly and move it toward the inner side.
5. While pressing down on the 2 hooks that attach the Right Guide Assembly to the Base Housing
(PL 2.3.43), free the 3 tabs of the Right Guide Assembly from the Base Housing notch and remove
the Right Guide Assembly.
6. Move the Left Side Guide Assembly toward the inner side.
7. While pressing down the 2 hooks that attach the Left Side Guide Assembly to the Base Housing,
free the 3 tabs of the Left Side Guide Assembly from the Base Housing notch and remove the Left
Side Guide Assembly.
s7100-074

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
