Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-68
Replacement Note: When installing the various parts of the Lift Up Gear Kit, their phases must be
aligned. Install the parts such that each is positioned to match the 2 triangle marks at the Z
Bottom Lock Rack and install the Bottom Lock Pinion Gear as the last step.

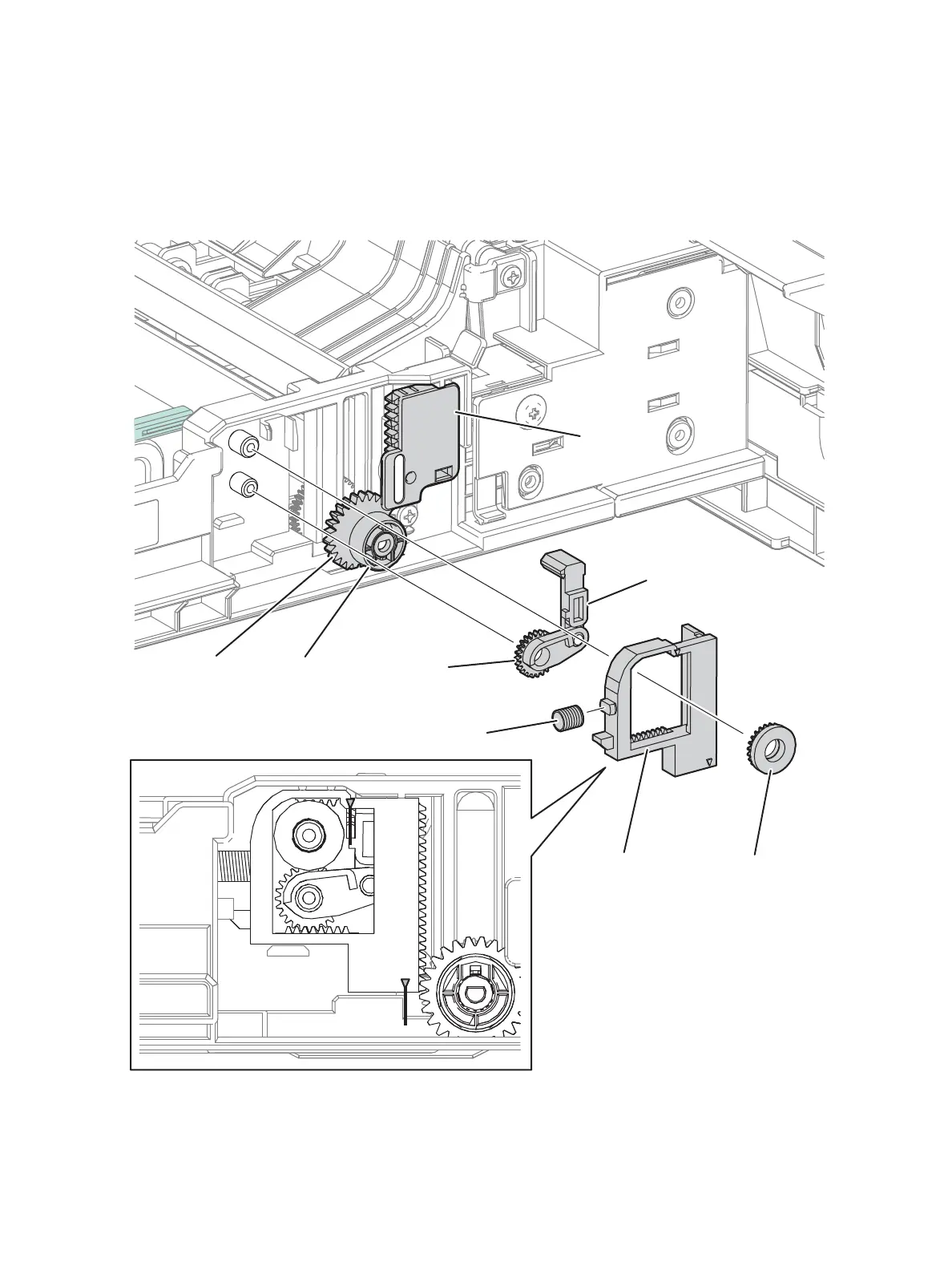

Figure 2
s7100-087
Right PB Gear PB Roller Bottom Lock
Lever Gear
Bottom Lock Lever
Bottom Lock Spring
Z Bottom
Lock Rack
Bottom Lock
Pinion Gear
Left Lock
Plate Rack
To Next Page
