Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-82

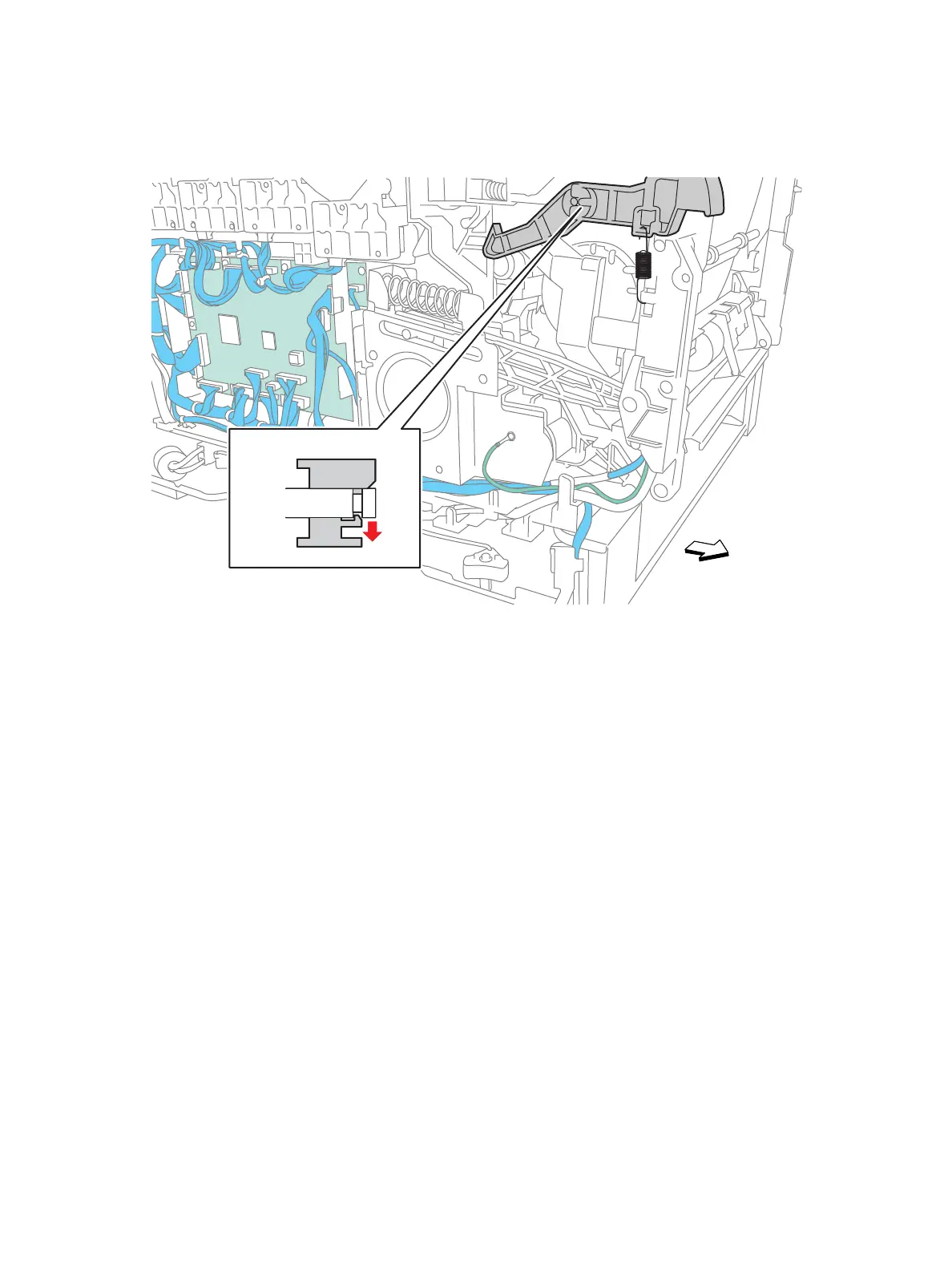

15. Release and remove the Latch Spring (PL 4.2.4).
16. Release the hook that secures the Left Latch Lever to the shaft and remove the Left Latch Lever.
s7100-098
Front
Hook Detail
