Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-84

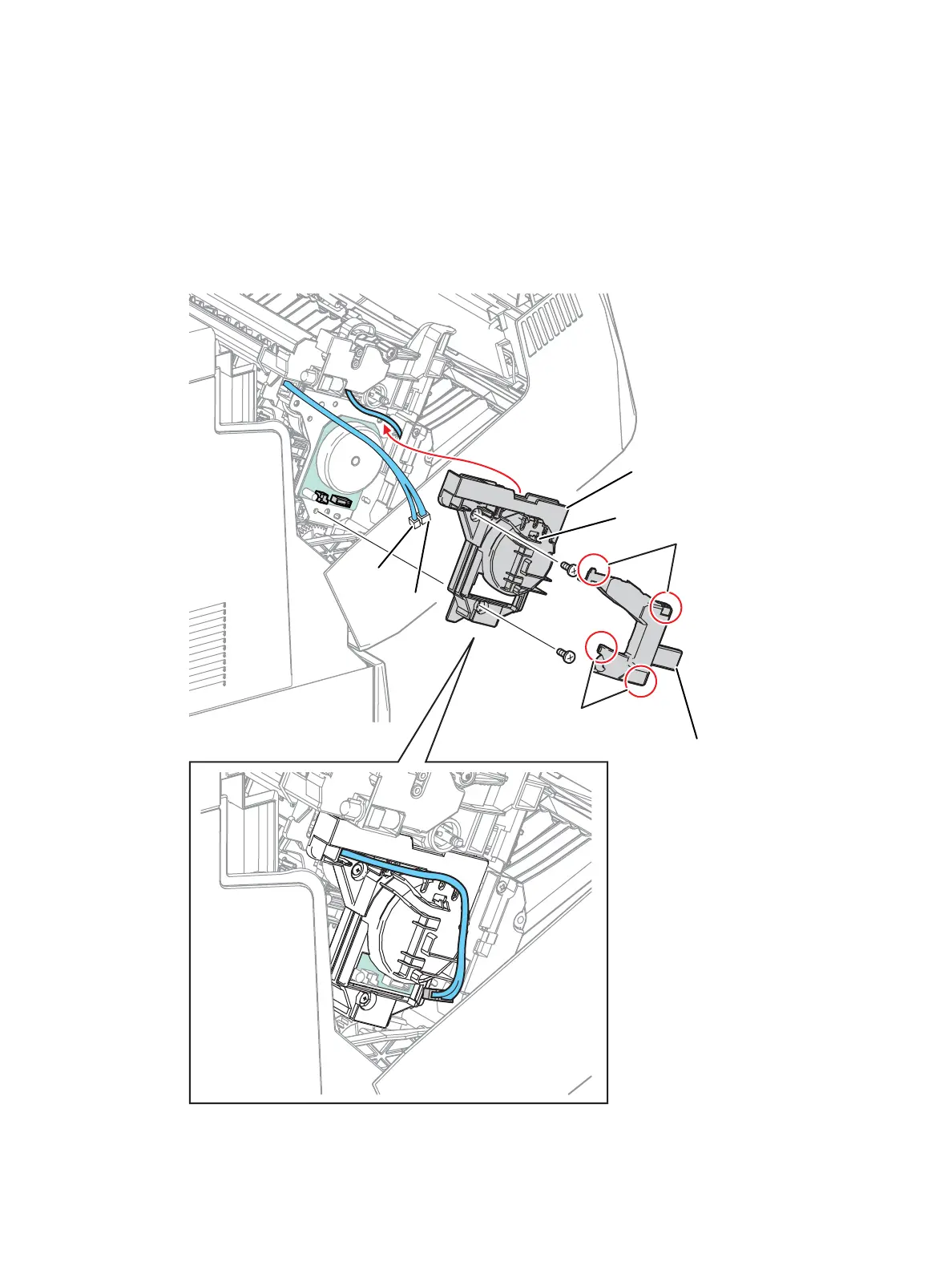

19. Release the 4 tabs that secure the Fuser Motor Harness Cover (PL 4.2.14) and remove the Fuser
Motor Harness Cover.
20. Disconnect the wiring harness connectors P/J242 and P/J4755 that are connected to the Fuser
Drive Assembly.
21. Remove 2 screws (silver, 6 mm) that secure the D Gear Cover to the Front Frame Assembly.
22. Release the wiring harness from the D Gear Cover and release the 2 tabs while removing the D
Gear Cover.
s7100-226
P/J242
P/J4755
D Gear Cover
Tab
Tab
Fuser Harness
Motor Cover
Tab
