Service Parts Disassembly

Phaser 7100 Service Manual Xerox Internal Use Only4-86

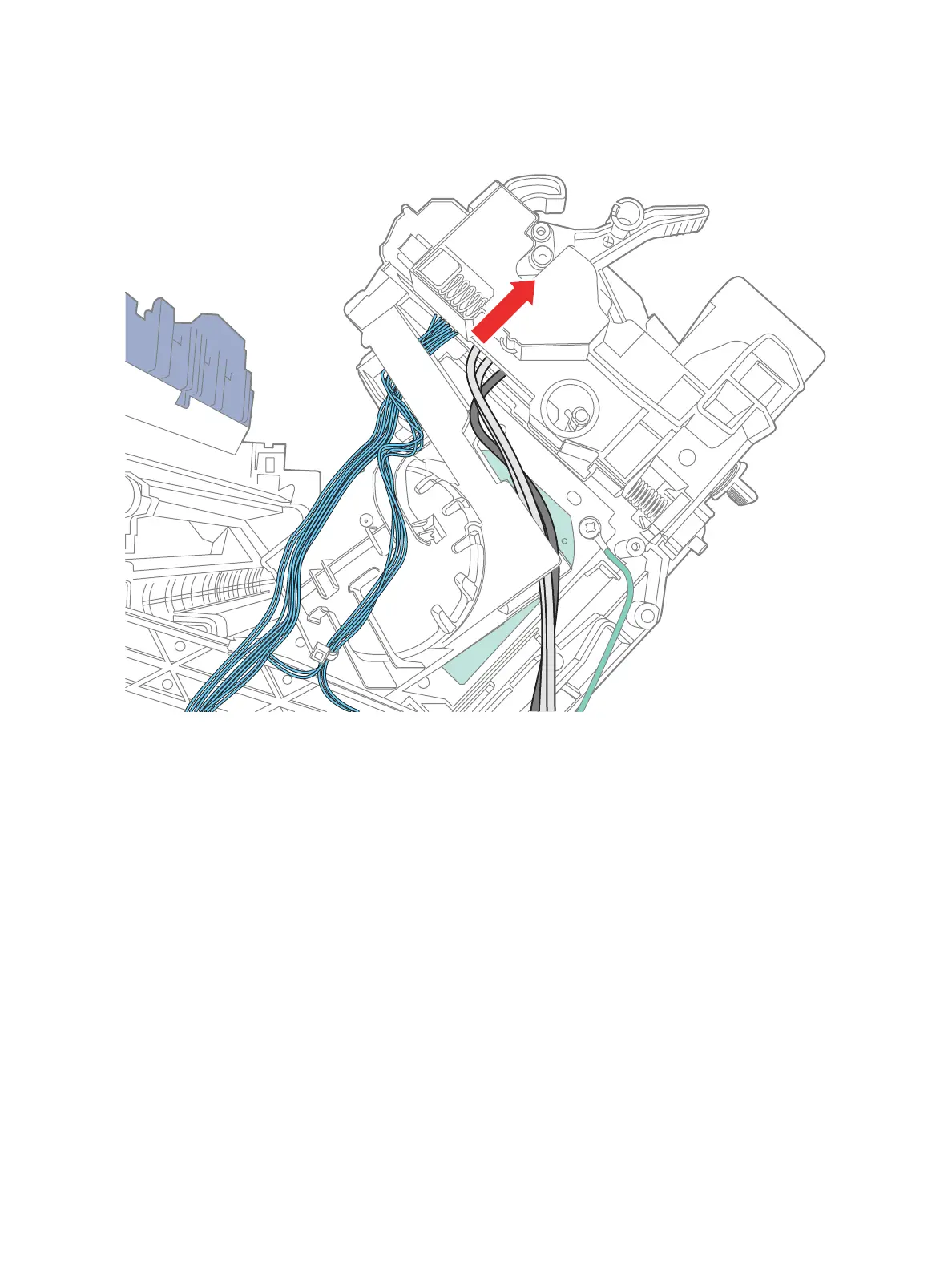

24. Release the wiring harnesses from the D Gear Cover and route the wiring harnesses through the

hole while pulling the wiring harness assembly out to remove.

s7100-338
