Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-111

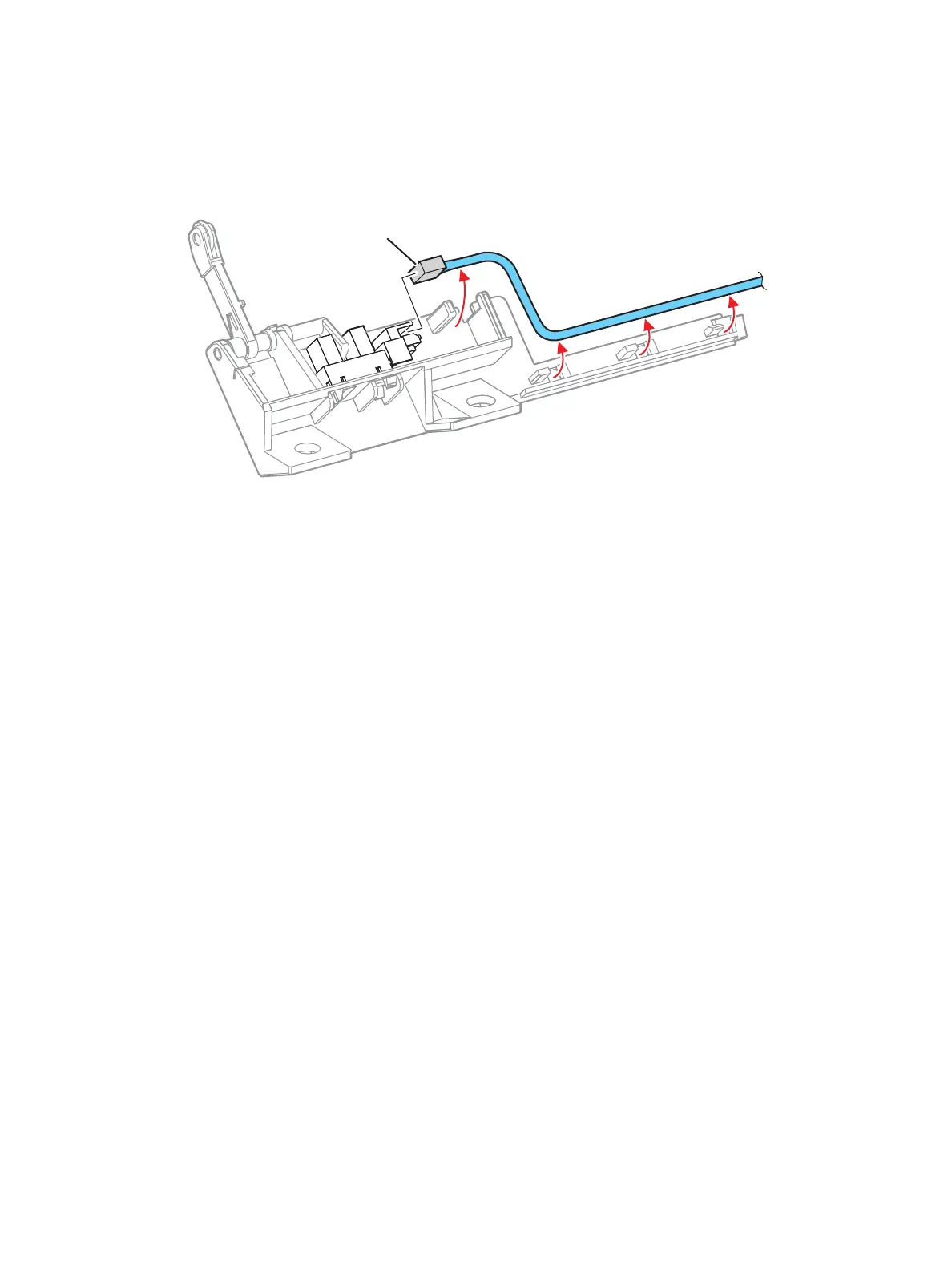

3. Turn the Bypass Tray Sensor Bracket Assembly over and disconnect the wiring harness connector
P/J4752.
4. Release the wiring harness from the Harness Guide and remove the Bypass Tray Sensor Bracket
Assembly.
s7100-210
P/J4752
