Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-141
Replacement Note: When installing the Developer Housing Assembly Y/M/C/K, make sure that the
Spring is attached in the correct position.
Note: When replacing the Developer Housing Assembly Y/M/C/K with a new one, make sure to
reset the life counter (DC135 HFSI on page 2-19). Reset 3 Chain-Links for each Developer Housing
Assembly.
Component Chain Link Counter Names
Developer Housing Assembly (Y) 950 800 (Y) Developer PV
950 816 (Y) Developer Roundtime
950 832 (Y) Developer Pixel Count
Developer Housing Assembly (M) 950 804 (M) Developer PV
950 820 (M) Developer Roundtime
950 836 (M) Developer Pixel Count
Developer Housing Assembly (C) 950 808 (C) Developer PV
950 824 (C) Developer Roundtime
950 840 (C) Developer Pixel Count
Developer Housing Assembly (K) 950 812 (K) Developer PV
950 828 (K) Developer Roundtime
950 844 (K) Developer Pixel Count

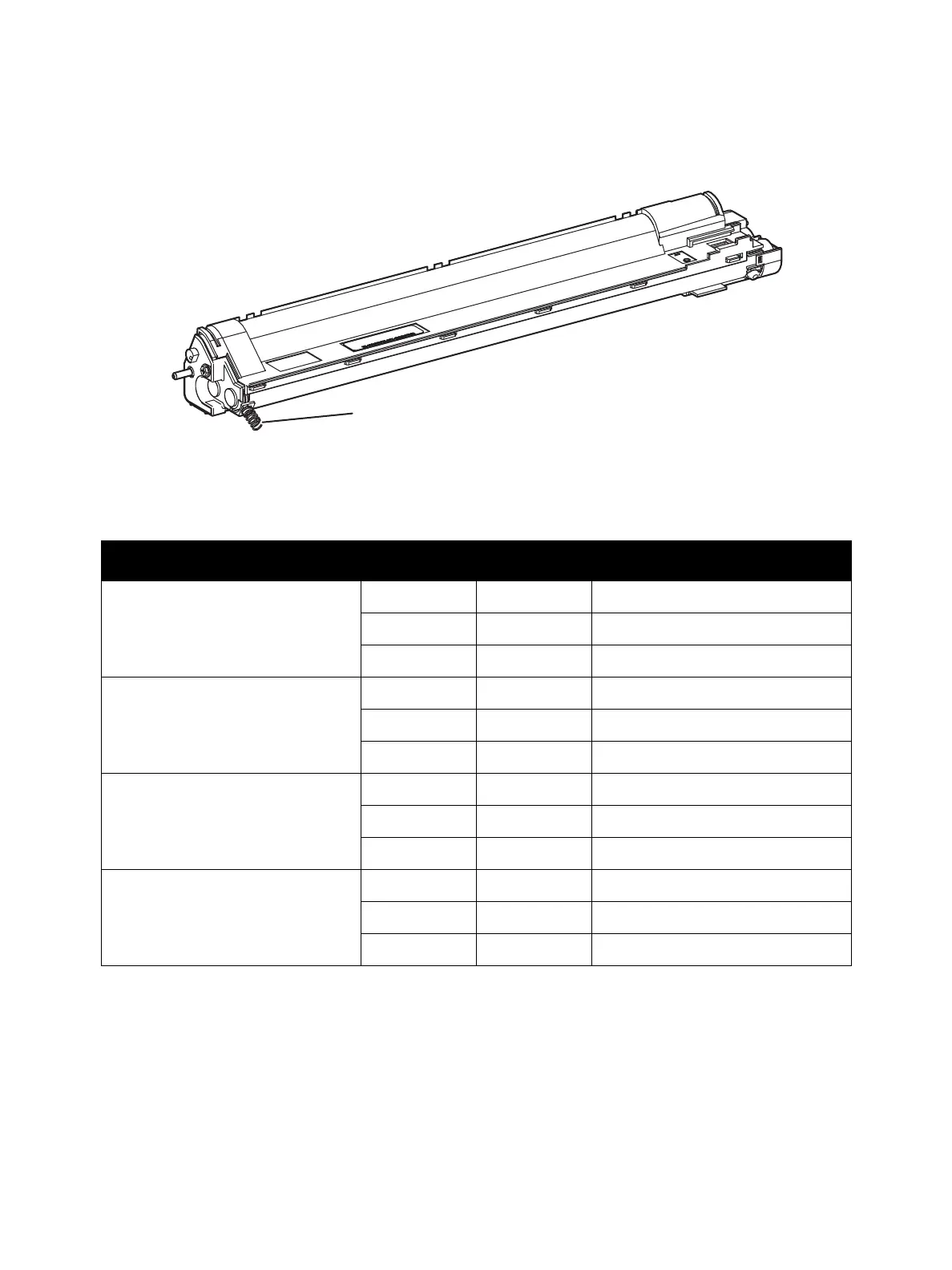

s7100-139
Spring
