Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-153

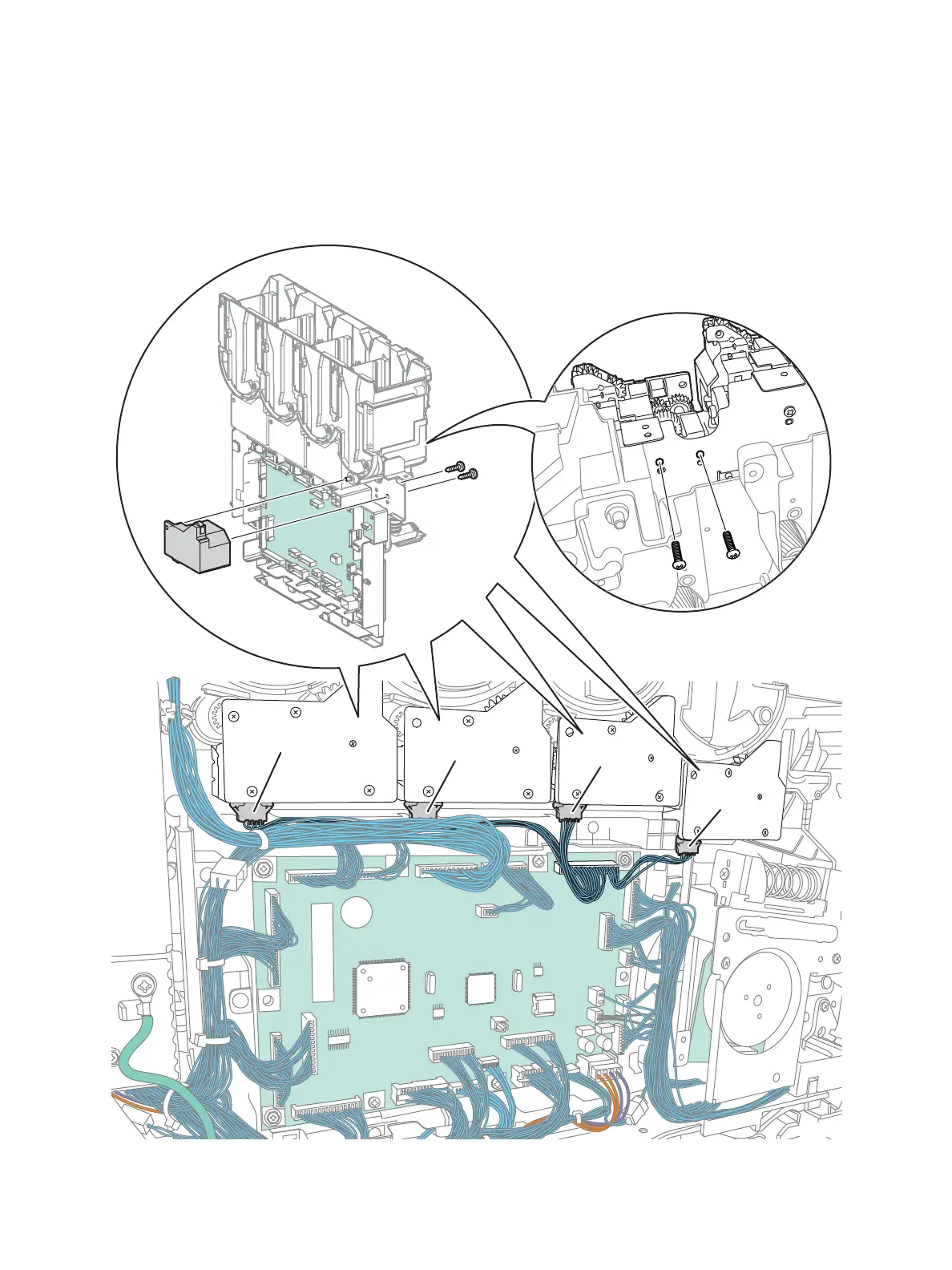

17. Disconnect the wiring harness connector (P/J4621, P/J4622, P/J4623, P/J4624) from the Dispense
Motor Assembly (Y/ M/ C/ K).
18. Remove 2 screws (silver, tapped, 8 mm) that secure the Dispense Motor Assembly to the MCU
Plate.
19. Remove the Dispense Motor Assembly.
s7100-413
P/J4621
P/J4622
P/J4623
P/J4624
