Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-165

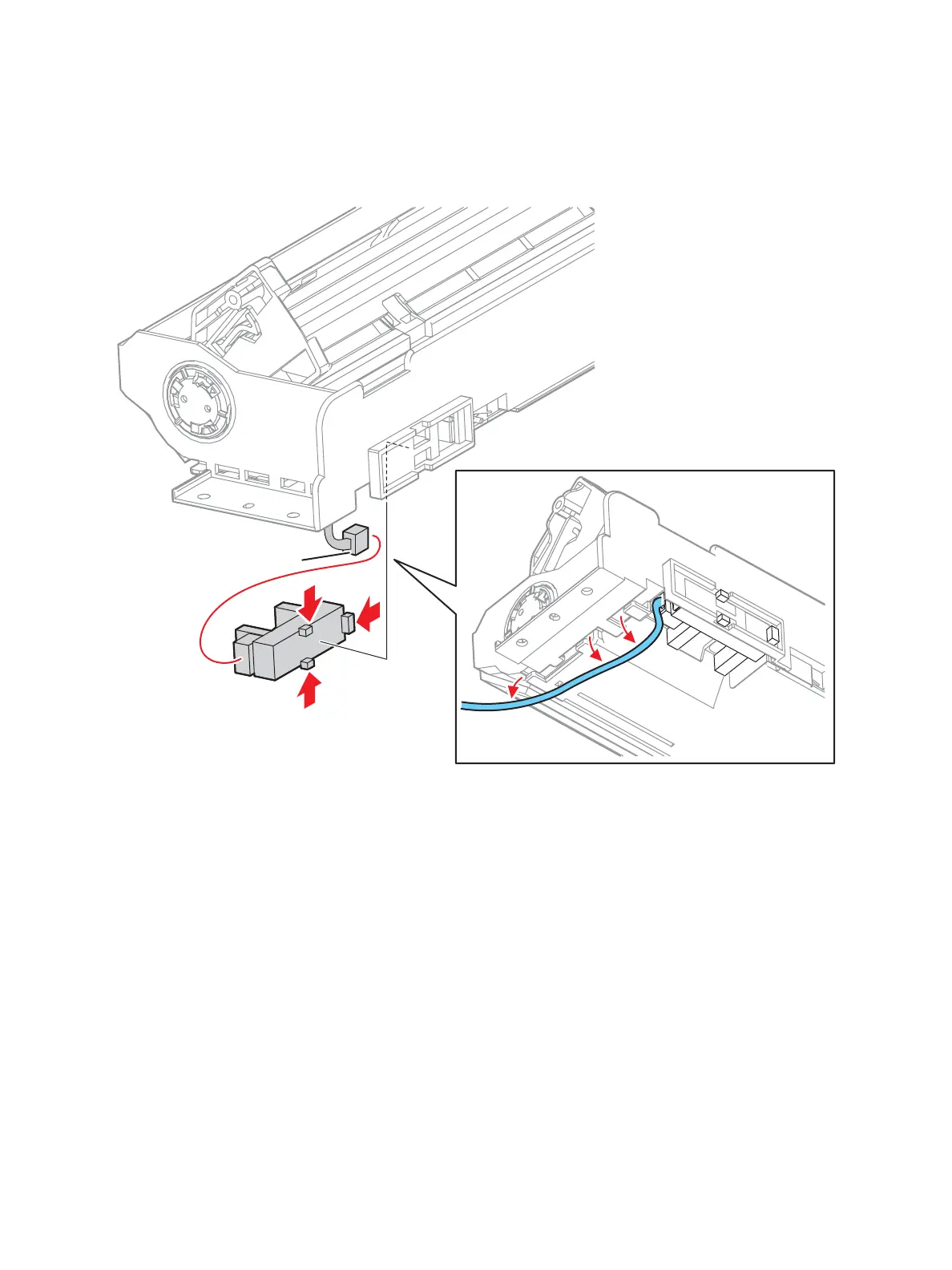

6. Remove the wiring harness from the Harness Guide.
7. Release the 3 hooks that secure the Toner Full Sensor and remove the Sensor.
8. Disconnect the wiring harness connector P/J4686 that is connected to the Toner Full Sensor.
s7100-261
P/J4686
