Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-167
5. Remove 2 screws (silver, tapped, 8 mm) that secure the Front Guide Plate (PL 9.1.7) and remove
the Plate.
6. Disconnect the wiring harness connector P/J4684 that is connected to the IBT Cleaner Motor
Assembly and release the wiring harness from the Harness Guide.
7. Remove 2 screws (silver, tapped, 8 mm) that secure the IBT Cleaner Motor Assembly.
8. Remove the IBT Cleaner Motor Assembly.

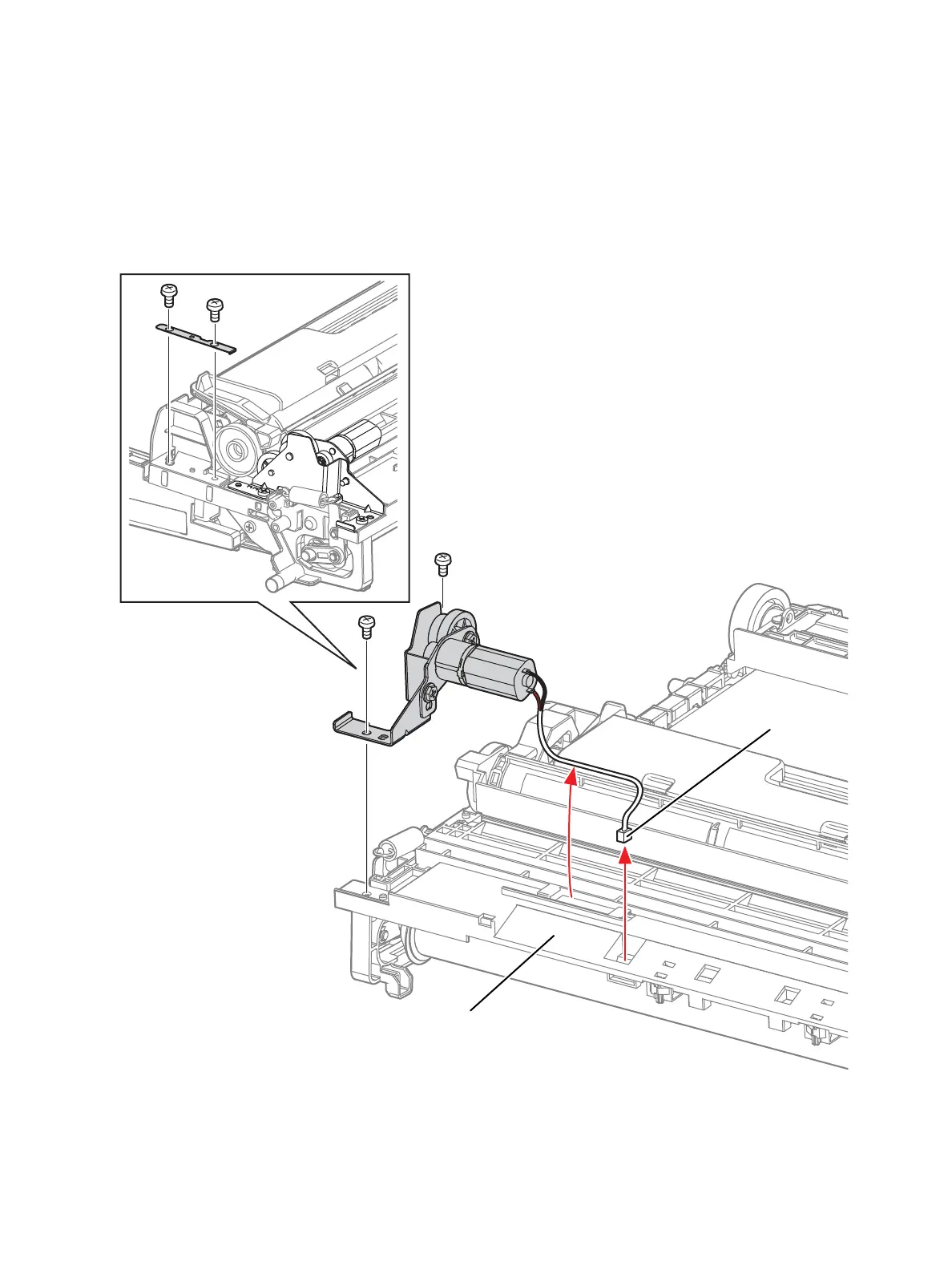

s7100-214
P/J4684
Harness Guide
To Next Page
