Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-169

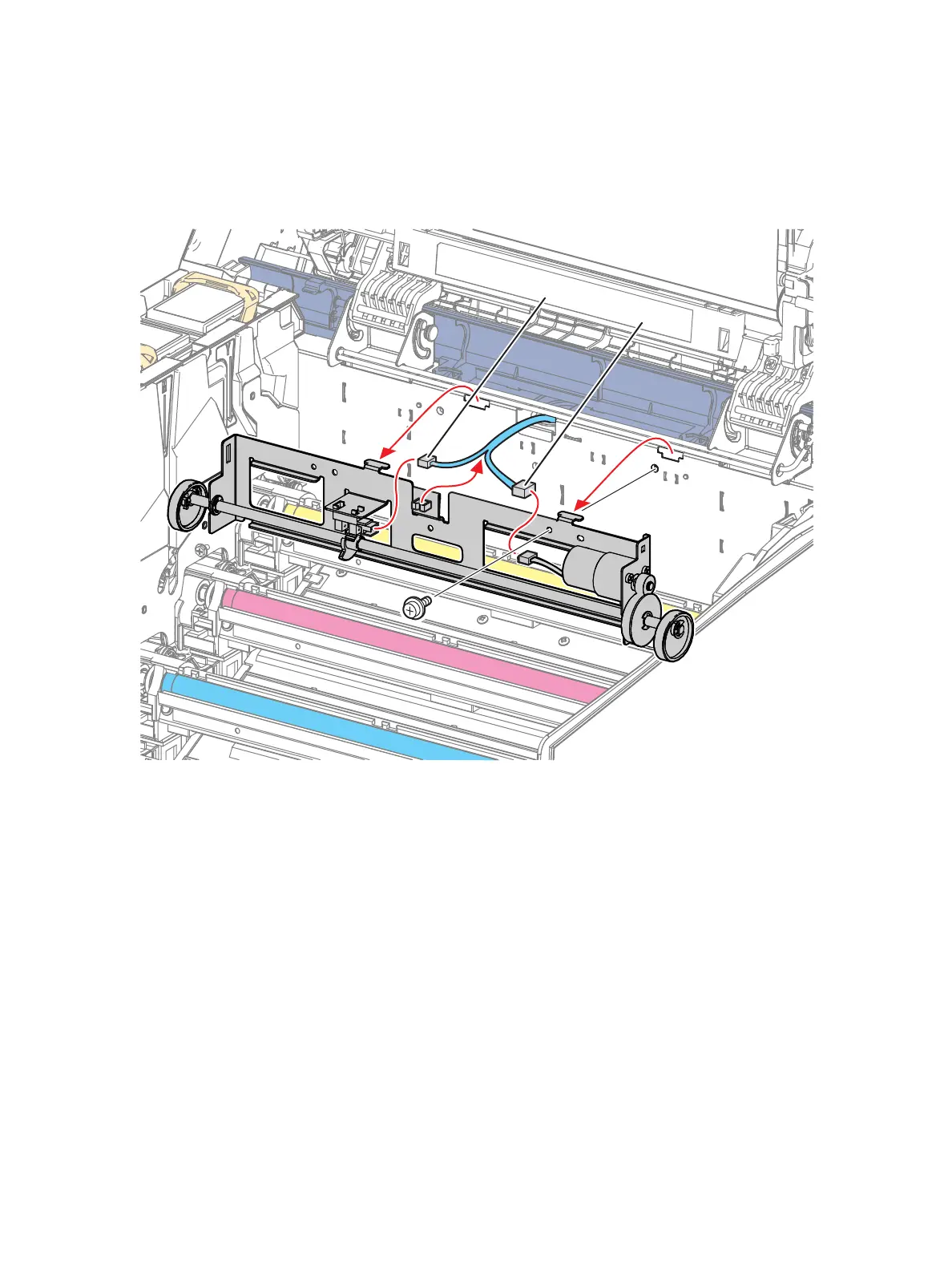

4. Disconnect the 2 wiring harness connectors P/J4662 and P/J4663 that are connected to the IBT
Retract Cam Assembly and remove the harness from the clamp.
5. Remove one screw (silver, 6 mm) that secures the IBT Retract Cam Assembly to the printer.
6. Remove the IBT Retract Cam Assembly.
s7100-262
P/J4663
P/J4662
