Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-194

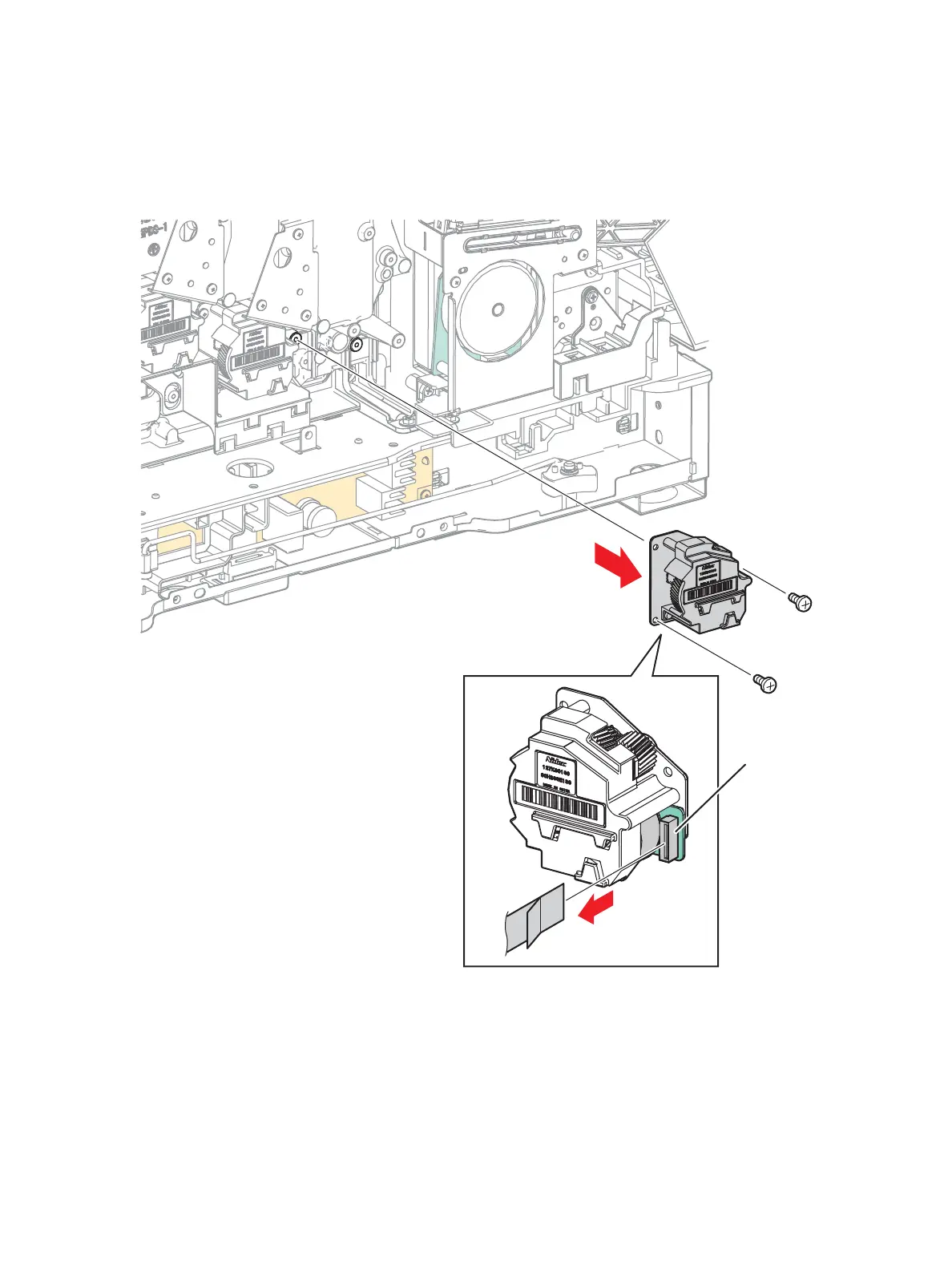

18. Disconnect the flat cable connectors (P/J111, P/J112, P/J113, P/J114) from the wiring harness
connector of the Developer Motor Assembly.
19. Remove 2 screws (silver, 6 mm) that secure the Developer Motor Assembly to the printer and
remove the Motor Assembly.
s7100-224
P/J111 (Y)
P/J112 (M)
P/J113 (C)
P/J114 (K)
To Next Page
