Service Parts Disassembly

Phaser 7100 Service Manual Xerox Internal Use Only4-196

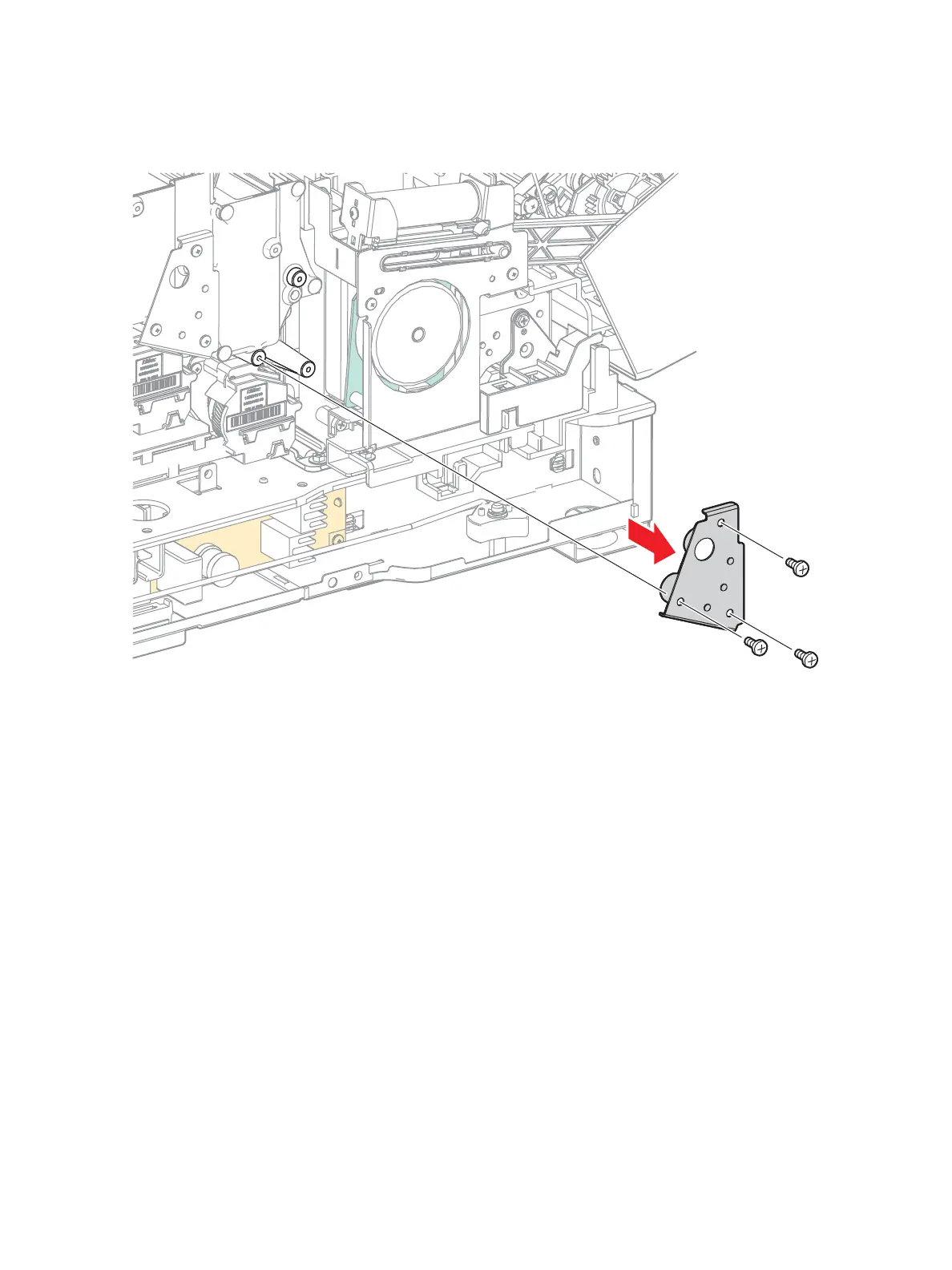

17. Remove 3 screws (silver, 6 mm) that secure the Developer Drive Assembly to the printer and

remove the Developer Drive Assembly.

s7100-225
