Xerox Phaser 7100 - Page 865

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-217

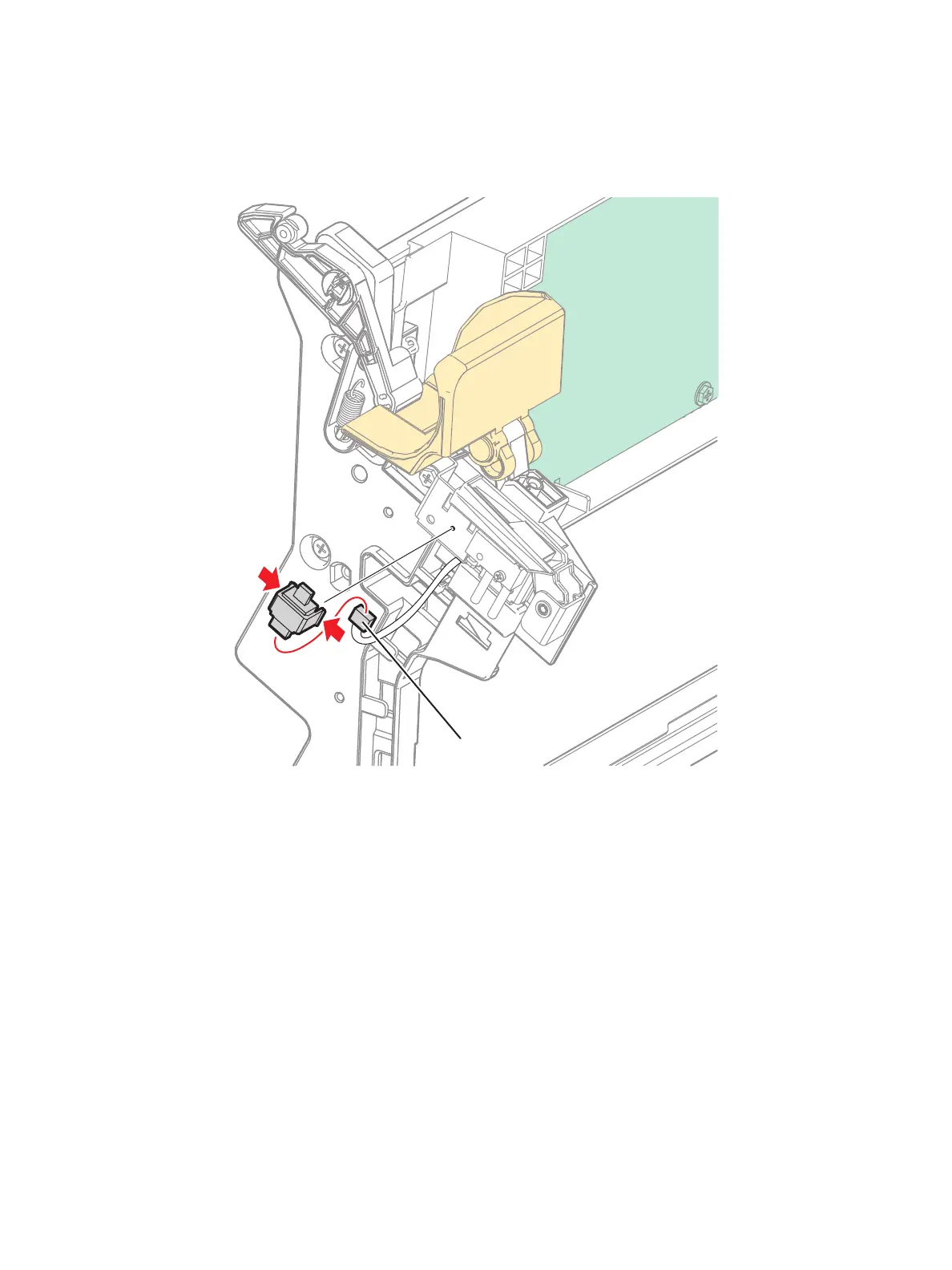

5. Disconnect the wiring harness connector P/J4682 that is connected to the Interlock Cap Switch.
6. Release the 2 hooks that secure the Interlock Cap Switch to the Front Interlock Switch Assembly
Kit (PL 12.2.4) and remove the Interlock Cap Switch.
s7100-366
P/J4682
