Xerox Phaser 7100

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-231
Replacement Notes:
– When replacing the I/P PWB, remember to remove the NVRAM from the old I/P PWB and
install it to the new I/P PWB.
– Be sure to move the SODIMM RAM from the old I/P PWB to the new I/P PWB.
Note: Observe the orientation of the NVRAM device before removing it from the I/P PWB.

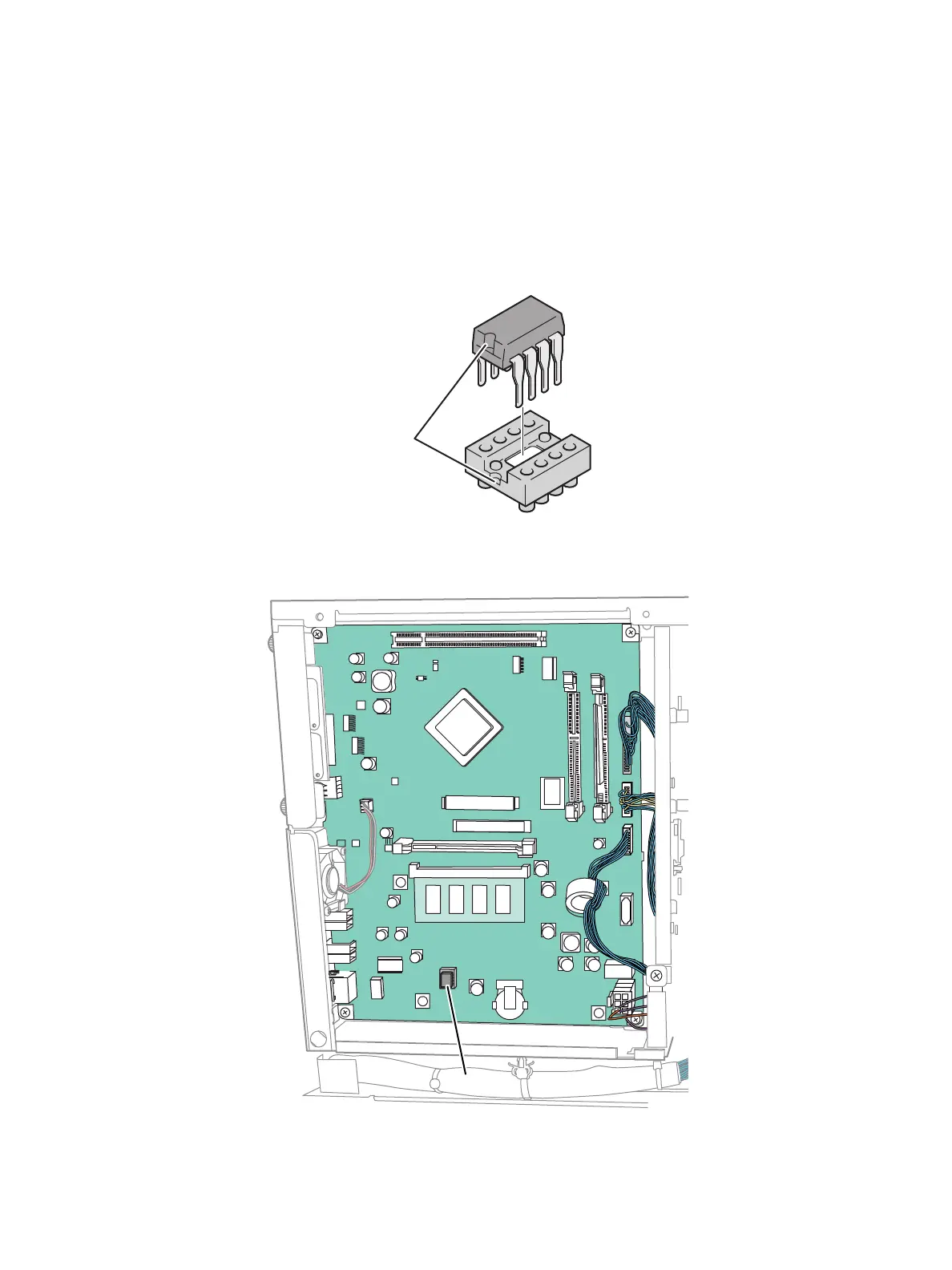

Figure 1 - NVRAM Orientation
Figure 2 - NVRAM Location
Notches
s7100-415
s7100-370
NVRAM
