Xerox Phaser 7100

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-67
Drum Motor (K)
• (K) PR Drive Assembly Components
– Drum Motor (K)
–PR2 Drive Idler Gear
– IBT Drive Gear
• (K) Imaging Unit Components
–Drum (K)
–Auger Gear 1
–Auger Gear 2
– Trickle Gear 1
– Trickle Gear 2
– Trickle Gear 3
– Trickle Gear 4
–Auger Assembly
– Trickle Auger 1
– Trickle Auger 2

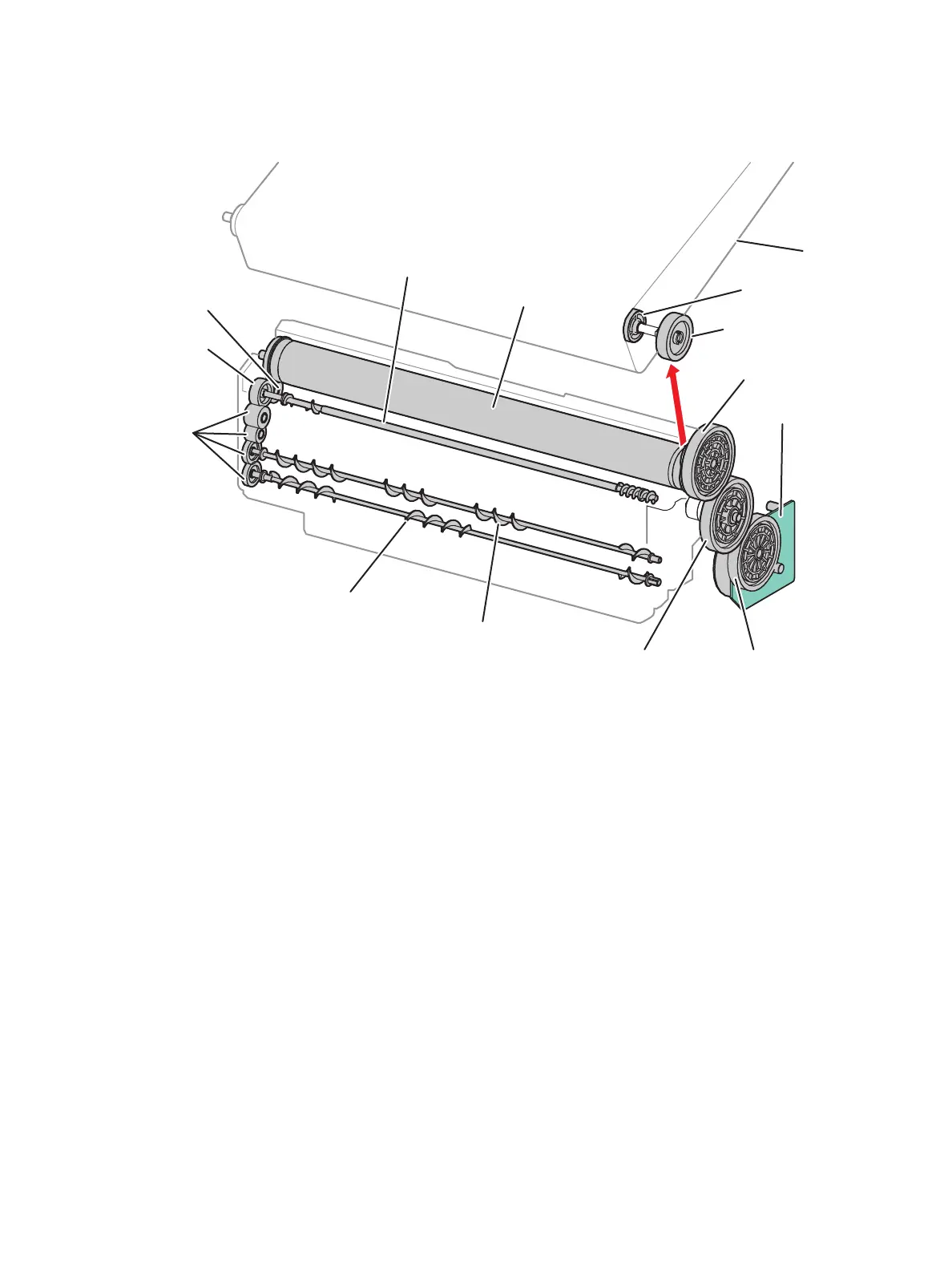

Drum Motor (K)
PR2 Drive Idler GearPR Drive Gear (K)
Auger Gear 1
Auger Gear 2
Trickle Auger 2
Trickle Auger 1
Auger Assembly
Drum (K)
Belt
AL Drive Roller
IBT Drive Gear
IBT Drive Gear
s7100-173
Trickle Gear
1,2,3,4
