Xerox Phaser 7100 Service Manual

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-69
Paper Handling Motor

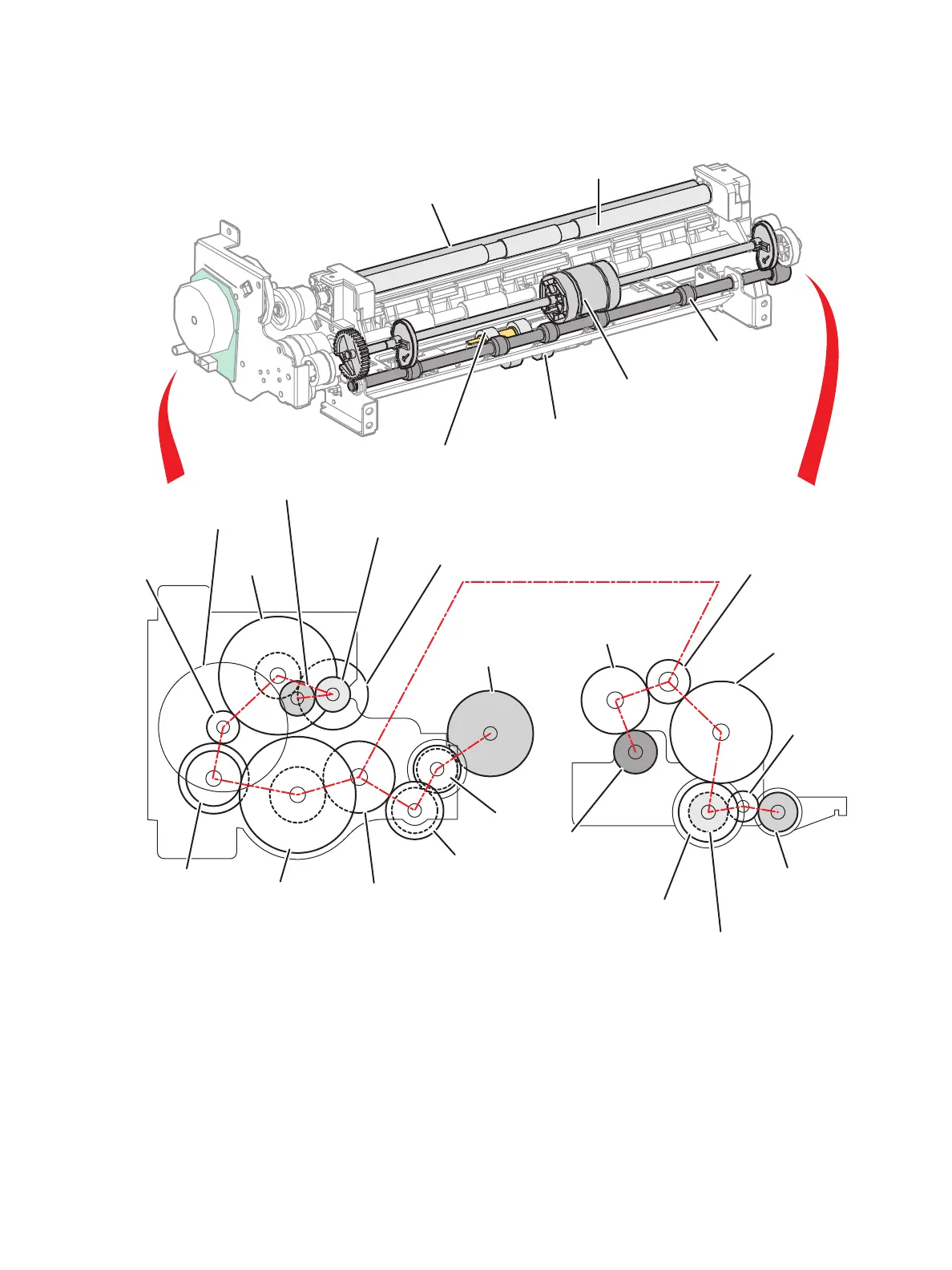

• Paper Handling Drive Assembly Components
– Paper Handling Motor
– Paper Handling Pinion Gear
–F1 E Gear
–F2 E Gear
–F3 E Gear
s7100-328
Paper Handling Motor
Turn Gear 17
R Turn Gear
Ў
Turn Roller Assembly
Metal Registration Roller Gear Ѝ Metal Registration Roller
Rubber Registration Roller Gear Ѝ Rubber Registration Roller
Registration Clutch
Feed Roller Clutch
Bypass Idler Gear
R2 Idler Gear
R1 Idler Gear
Oneway Nudger Clutch
Ў
Feed Roller
Nudger Gear
Ў
Nudger Roller
Nudger
Idler Gear
Bypass Tray Feed Gear
F2 E Gear
F1 E Gear
F3 E Gear
F4 E Gear
R1 E Gear
Paper Handling
Pinion Gear
Turn Roller Assembly
Bypass Tray Feed Roller
Feed Roller
Nudger Roller
Metal Registration Roller
Rubber Registration Roller
Bypass Tray Feed Roller Assembly
Ќ
