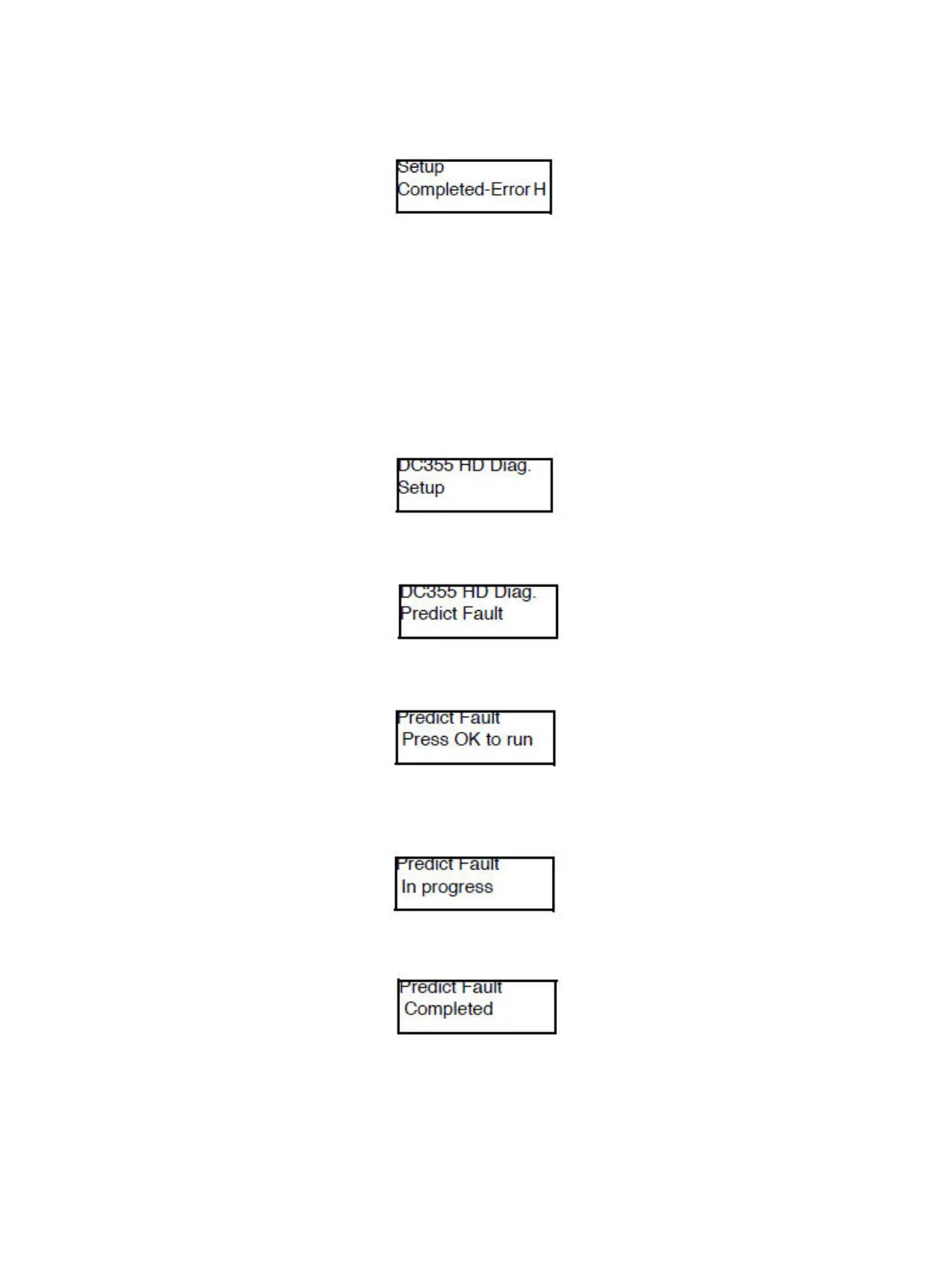

When the process has completed with error, the Setup - Completed-Error screen is displayed.
13. Press Menu to return to the Diagnostics - Fault Diag. screen.
Predict Fault
1. Enter Service Diagnostics menu (Entering Service Diagnostics on page 2-14).
2. Press Down Arrow and navigate to Diagnostics Fault Diag.
3. Press Right Arrow and navigate to Fault Diag. DC140 Monitor.
4. Press Down Arrow and navigate to Fault Diag. DC355 HD Diag.
5. Press Right Arrow to display the DC355 HD Diag - Setup screen.
6. Press Down Arrow to display the DC355 HD Diag. - Predict Fault screen at the same level.
7. Press Right Arrow to display the run Predict Fault - Press OK to run screen.
8. Press OK to run the fault prediction. As the process is running, the Predict Fault - In progress screen
is displayed.
When the process has completed successfully, the Predict Fault - Completed screen is displayed.
